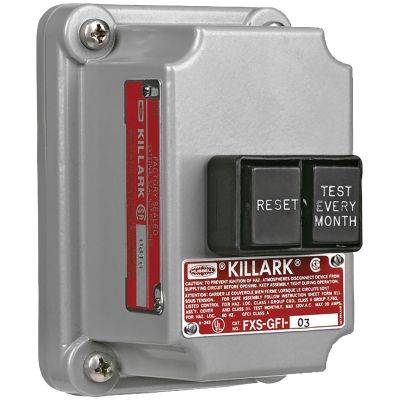

Hubbell Killark FXS-GFIO3
Killark SEAL-X FXS-GFIO3 Factory Sealed Pushbutton Control Station, 120 VAC, 20 A, NEMA 3/7CD/9EFG NEMA Rating
Zone Rated Hazardous Location
7222841
FXS-GFIO3
Hubbell Killark
$0.00
/ ea
- Actuator: Pushbutton
- Amperage Rating: 20
- Color: Gray
- Dimensions: 5.3125 in H x 3.6875 in W x 2.59 in D
- Finish: Epoxy Powder Baked
- Material: Copper-Free Aluminum Alloy
- Nema Rating: NEMA 3/7CD/9EFG
- Number of Poles: 2
- Operating Temperature: -25 to 40
- Series: FXS-GFI
- Type: Factory Sealed
- Voltage Rating: 120
Killark, FXS-GFIO3, Push Button Control Station, Factory Sealed, Series: FXS-GFI, 120 VAC, 20 A, 2 Pole, Push Button Actuator, NEMA 3/7CD/9EFG NEMA Rating, -25 to 40 deg C Operating, Copper-Free Aluminum Alloy, Epoxy Powder Baked, Gray, 5.3125 in H x 3.6875 in W x 2.59 in D Dimensions
- Features
- Test and reset pushbuttons are provided on cover assembly
- Includes new GFI to meet latest UL943 GFCI standards revisions
- Exterior gasket provides NEMA 3 weatherproof protection
- Ground boss for grounding in the splice box
- Captive cover bolts are made from stainless steel
- Eliminates external sealing requirements
- Lower installation cost
- NEMA 3 weatherproof
- Color coded wiring with more wiring space for easier field installation
- Stainless steel captive screws for cover assembly
- Operating shaft in both pushbuttons and selector switches are stainless steel
