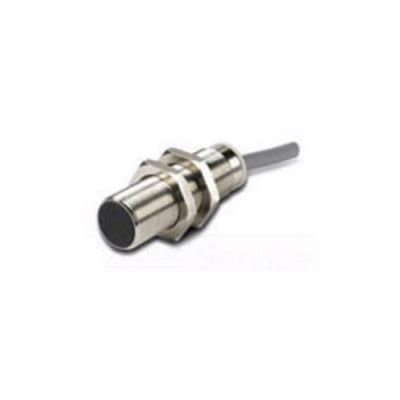

Eaton Cutler-Hammer E57-18GU08-D
EATON E57-18GU08-D Global Unshielded Straight Tubular Proximity Sensor, Inductive, NPN/PNP Output, 1NO Contact, 10 to 30 VDC, 500 Hz Switching Speed
Inductive Proximity Sensors
7697046
E57-18GU08-D
Eaton Cutler-Hammer
$0.00
/ ea
- Accuracy: <2
- Amperage Rating: 100
- Connection Type: 2-Wire 6.6 ft Cable
- Contact Configuration: 1NO
- Enclosure Type: NEMA IP67/IP69K
- Material: Brass
- Mounting Type: Flush
- Output Type: NPN/PNP
- Sensing Distance: 8
- Sensing Method: Inductive
- Sensing Position: End
- Series: E57 Global
- Size: 18 mm Dia
- Switching Speed: 500
- Temperature Rating: -13 to 158
- Type: Unshielded Straight Tubular
- Voltage Rating: 10 to 30
EATON Proximity Sensor, Unshielded Straight Tubular, Series: E57 Global, Inductive Sensing Method, 8 mm Sensing Distance, End Sensing Position, <2 % Accuracy, NPN/PNP Output, 1NO Contact Configuration, 10 to 30 VDC, 100 mA, 2-Wire 6.6 ft Cable Connection, 500 Hz Switching Speed, 18 mm Dia Size, NEMA IP67/IP69K Enclosure, -13 to 158 deg F, Flush Mounting, Brass
