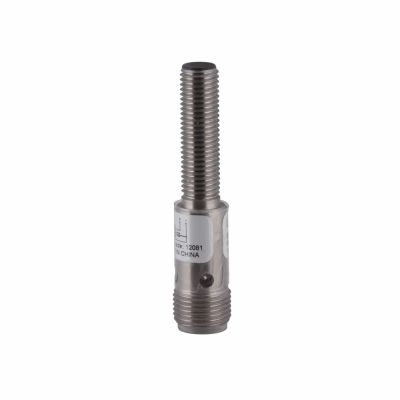

Eaton Cutler-Hammer E57EAL8T111SD
EATON E57EAL8T111SD E57 Small Diameter Short Body Shielded Straight Proximity Sensor, Inductive, PNP Open Collector Output, NO Contact, 10 to 30 VDC, 2 kHz Switching Speed
Inductive Proximity Sensors
7671521
E57EAL8T111SD
Eaton Cutler-Hammer
$0.00
/ ea
- Accuracy: <1
- Amperage Rating: 200
- Connection Type: 3-Wire 4-Pin M12
- Contact Configuration: NO
- Enclosure Type: NEMA 4/4X/6/6P/12/13/IP67
- Material: Stainless Steel
- Mounting Type: Flush
- Output Type: PNP Open Collector
- Response Time: <50
- Sensing Distance: 1
- Sensing Method: Inductive
- Sensing Position: End
- Series: E57 Small Diameter
- Size: 0.31 x 0.31 x 1.97
- Switching Speed: 2
- Temperature Rating: -13 to 158
- Type: Short Body Shielded Straight
- Voltage Rating: 10 to 30
EATON Proximity Sensor, Short Body Shielded Straight, Series: E57 Small Diameter, Inductive Sensing Method, 1 mm Sensing Distance, End Sensing Position, <1 % Accuracy, PNP Open Collector Output, NO Contact Configuration, 10 to 30 VDC, 200 mA, 3-Wire 4-Pin M12 Connection, <50 ms Response, 2 kHz Switching Speed, 0.31 x 0.31 x 1.97 in Size, NEMA 4/4X/6/6P/12/13/IP67 Enclosure, -13 to 158 deg F, Flush Mounting, Stainless Steel
