Eaton B-Line Inc. FIG200-3/4-PGL

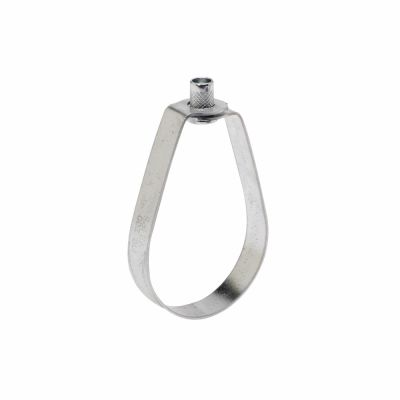

B-Line Tolco™ FIG 200-3/4-PGL Type 10 Adjustable Trimline Band Swivel Hanger, 3/4 in Pipe, 1/2-13 in Rod, Steel, Pre-Galvanized
Beam Clamps
7562462
FIG200-3/4-PGL
Eaton B-Line Inc.
$0.00
/ ea
- Dimensions: 3.102 in L x 1.346 in W x 0.869 in H
- Finish: Pre-Galvanized
- Material: Steel
- Pipe Size: 3/4
- Rod Size: 1/2-13
- Series: FIG 200
- Specifications: 2-1/2 in Above the Center
- Suitable For Use With: Fire Sprinkler, Pipe Hanger, Mechanical Ring, Band, Strap, Pipe and Rod
- Temperature Rating: 650
- Type: Type 10 Adjustable Trimline
Eaton B-Line series TOLCO Trimline adjustable band hanger, 0.8690" H x 3.1020" L x 1.3460" W, Steel, Pre-galvanized, 650 temp, 0.75" pipe
- Features
- Knurled swivel nut design permits hanger adjustment after installation
- Flared edges ease installation for all pipe types and protect CPVC plastic pipe from abrasion
- Captured design keeps adjusting nut from separating with hanger
- Hanger is easily installed around pipe
- Spring tension on nut holds it securely in hanger before installation
- Adjusting nut is easily removed
