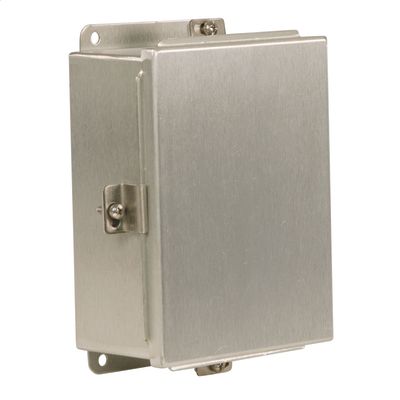

Hubbell Wiegmann BN4141206AL
WIEGMANN BN4141206AL JIC WELDED SEAM ENCLOSURE, 12 IN W X 6 IN D X 14 IN H, NEMA 4/4X/12/13, ALUMINUM ALLOY
Enclosure General Purpose
4943999
BN4141206AL
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 1008
- Color: Aluminum
- Cover Type: Lift-Off
- Depth: 6
- Finish: Smooth Grained
- Height: 14
- Material: Aluminum Alloy
- Mounting Type: External/Surface/Wall
- Nema Rating: NEMA 4/4X/12/13
- Panel Size: 12.88 x 10.88
- Series: BN4-AL
- Type: JIC Welded Seam
- Width: 12
Wiegmann Enclosure, JIC Welded Seam, Series: BN4-AL, 12 in Width, 6 in Depth, 14 in Height, NEMA 4/4X/12/13, Lift-Off Cover, 12.88 x 10.88 in Panel, 1008 cu-in, External/Surface/Wall Mount, Aluminum Alloy, Smooth Grained, Aluminum
- Features
- Bodies and doors fabricated from 14 ga 0.08 in THK 5052-H32 aluminum
- Continuously welded seams ground smooth, no holes or knockouts
- Closed cell oil-resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided for mounting
- Stainless steel screws and clamps on four sides of cover to assure watertight seal
- Grounding provisions provided
- Without knockout
