Hubbell Wiegmann N4483010

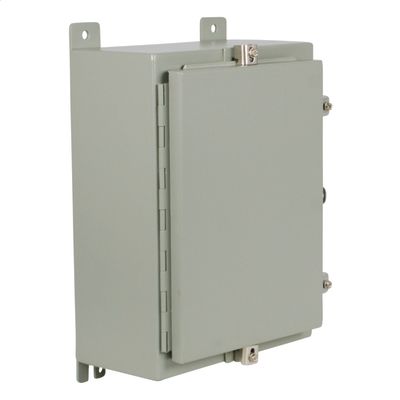

WIEGMANN N4483010 1-DOOR WELDED SEAM ENCLOSURE, 30 IN W X 10 IN D X 48 IN H, NEMA 4/12/13, CARBON STEEL
Enclosure General Purpose
4293049
N4483010
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 14400
- Color: Gray
- Cover Type: Continuous Hinged
- Depth: 10
- Finish: Textured/Polyester Powder Coated
- Height: 48
- Lock: Padlock
- Material: Carbon Steel
- Mounting Type: External Feet/Wall
- Nema Rating: NEMA 4/12/13
- Panel Size: 45 x 27
- Series: N4 Series
- Type: 1-Door Welded Seam
- Width: 30
Wiegmann, N4483010, Enclosure, 1-Door Welded Seam, Series: N4 Series, 30 in Width, 10 in Depth, 48 in Height, NEMA 4/12/13 NEMA Rating, Continuous Hinged Cover, 45 x 27 in Panel, Lock: Padlock, 14400 cu-in Capacity, External Feet/Wall Mounting, Carbon Steel, Textured/Polyester Powder Coated, Gray
- Features
- Bodies and doors fabricated from 14 ga carbon steel
- Continuously plasma welded seams
- Rolled lip on three sides of door and all sides of enclosure opening is provided to exclude liquids and contaminants
- Quick and easy to operate stainless steel door clamps are provided
- Doors are removable by pulling stainless steel continuous hinged pin
- Hasp and staple are provided for padlocking
- Print pocket is provided
- Enclosures are supplied with closed cell neoprene gasket
- Collar studs provided for mounting
- External mounting feet are provided for mounting enclosures
- Grounding provisions provided
