Hubbell Wiegmann N4D7472123PT

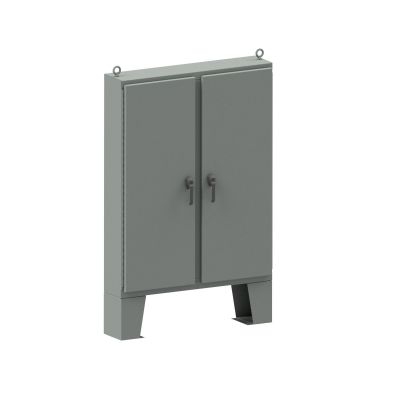

WIEGMANN N4D7472123PT 2-DOOR ENCLOSURE, 80 IN W X 24 IN D X 24 IN H, NEMA 4, CARBON STEEL
Enclosure General Purpose
7096050
N4D7472123PT
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 63936
- Color: Gray
- Depth: 24
- Finish: Textured
- Height: 24
- Lock: 3-Point Keylock/Padlock Combo Handle
- Material: Carbon Steel
- Mounting Type: Floor
- Nema Rating: NEMA 4
- Series: N4D-3PT
- Type: 2-Door
- Width: 80
Wiegmann Enclosure, 2-Door, Series: N4D-3PT, 80 in Width, 24 in Depth, 24 in Height, NEMA 4, Lock: 3-Point Keylock/Padlock Combo Handle, 63936 cu-in, Floor Mount, Carbon Steel, Textured, Gray
- Features
- Bodies and doors fabricated from 10 ga steel
- Continuously welded seams ground smooth, no holes or knockouts
- Body stiffeners added for extra strength
- Rolled lip around three sides of door and along top of enclosures opening excludes liquids and contaminants from entering
- Heavy gauge continuous hinges are provided to secure door
- Doors are removable by pulling stainless steel continuous hinged pin
- Standard 12 in H floor kits are welded to bottom of enclosure
- Heavy duty removable lifting eyes
- Easily removable center post permits easy panel installations
- Doors are sealed with poured in place polyurethane gasket
- Grounding provisions provided
- Continuously welded seams construction
