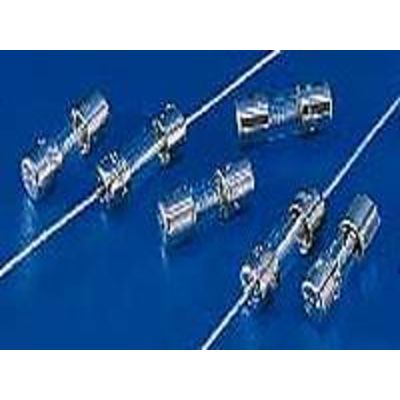

Littelfuse 023001.5VXP
Littelfuse Slo-Blo 23001.5P Time Lag Cartridge Fuse With Axial Lead, 1.5 A, 250 VAC, 10 kA Interrupt, Cartridge Body
Electronic Fuses
7040126
023001.5VXP
Littelfuse
$0.00
/ ea
- Amperage Rating: 1.5
- Body Size: 5 mm Dia x 15 mm L
- Body Type: Cartridge
- Indicating/Non-Indicating: Indicating
- Interrupt Rating: 10
- Material: Glass
- Response Time: 4 hr, 1 hr, 3 to 20 s
- Series: 230
- terminal type: Ferrule
- Type: Time Lag
- Voltage Rating: 250
Littelfuse Slo-Blo Cartridge Fuse, Time Lag, Series: 230, Indicating, 1.5 A, 250 VAC, 10 kA Interrupt, 4 hr, 1 hr, 3 to 20 s Response, Ferrule Terminal, Cartridge Body, Glass, 5 mm Dia x 15 mm L Body
- Features
- Offer the same performance characteristics as standard product, and help to reduce time locating the tripped fuse and troubleshooting circuit issues
- Combines conventional over current protection with ability to withstand high current, short duration pulses
- -60 to 125 deg C operating temperature
- 0.1077 ohms resistance
- 20 I2T (A2 sec) nominal melting
- 10 kA at 125 VAC interrupting rating
- Neutral grounding resistor monitor
- Current limiting, cable limiter
- 4 hr minimum at 100%, 1 hr maximum at 135%, 3 to 20 sec at 200%
- Glass body, nickel plated brass end cap, tin plated copper lead
- Size 2AG
