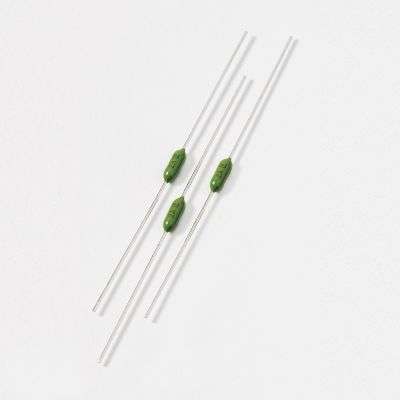

Littelfuse 0251.500VXL

Littelfuse PICO II 251.500L Small Standard Very Fast Acting Subminiature Fuse With Puller, 0.5 A, 125 VAC/VDC, 50/300 A Interrupt, Leaded Body
Electronic Fuses
7035793 0251.500VXL
Littelfuse
$0.00 / ea

Littelfuse 0251.500VXL
  • Amperage Rating: 0.5
  • Body Size: 2.468 in W x 0.11 in H
  • Body Type: Leaded
  • Indicating/Non-Indicating: Non-Indicating
  • Interrupt Rating: 50/300
  • Material: Ceramic
  • Mounting Type: Through Hole
  • Response Time: 4
  • Series: 0251
  • terminal type: Axial
  • Type: Small Standard Very Fast Acting
  • Voltage Rating: 125
VERY FAST-ACTING PICO II LEADS .500A. The PICO II Very Fast-Acting Fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package. Features: Very fast-acting. Small size. Wide current rating range (62mA- 15A). RoHS compliant. Halogen-free available. Wide operating temperature range. Low temperature rerating.
QTY
Add to Wishlist
  • Features
  • Wide current rating range
  • Wide operating temperature range
  • Low temperature rerating
  • 50 A at 125 VAC, 300 A at 125 VDC interrupt rating
  • 4 hr at 100%, 1 s at 200%, 300 ms at 275%, 30 ms at 400%, 4 ms at 1000% response time
