Littelfuse LPSM0004ZQCID

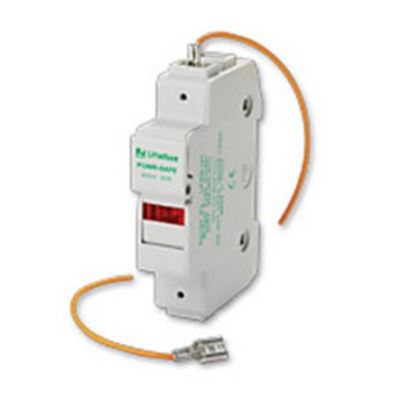

Littelfuse POWR-SAFE LPSM0004ZQCID Dead Front Indicating Fuse Holder, 600 VAC/VDC, 30 A, 4 Poles
Fuse Holders and Blocks
7005480 LPSM0004ZQCID
Littelfuse
$0.00 / ea

Littelfuse LPSM0004ZQCID
  • Amperage Rating: 30
  • Class: Midget
  • Color: White
  • Connection Type: Quick-Connect
  • Dimensions: 2.803 in W x 2.35 in D x 3.15 in H
  • Material: Thermoplastic
  • Mounting Type: DIN Rail
  • Number of Poles: 4
  • Series: LPSM
  • Suitable For Use With: Midget 10 x 38 mm Fuse
  • Type: Dead Front Indicating
  • Voltage Rating: 600
LPSM004QCID is a quick-connect, indicating midget fuse dead front fuse holder with a maximum ampere rating of 30.
QTY
Add to Wishlist
  • Features
  • Dual 1/4 in quick connect terminals on top and bottom of holder
  • Meets dead front requirements
  • Mountable on 35 mm DIN rail
  • Local LED indication
