Hubbell Wiring HBL5963VY

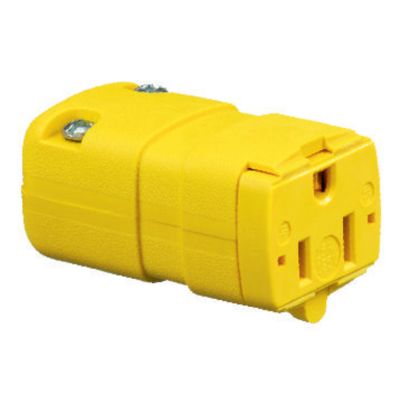

Wiring Device-Kellems Valise HBL5963VY Female Standard Sized Straight Cord Mount Connector Body, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
5149050
HBL5963VY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Yellow
- Cord Diameter: 0.23 to 0.36
- Dimensions: 1.25 in W x 1.17 in D x 2.25 in H
- Enclosure: IP20
- Grade: Commercial/Industrial
- Material: Nylon
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Standard Sized Straight Cord Mount
- Voltage Rating: 125
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Yellow, Single Pack.
- Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
- Insulation displacement terminals reduce assembly time
