Hubbell Wiring HBL5969VBLK

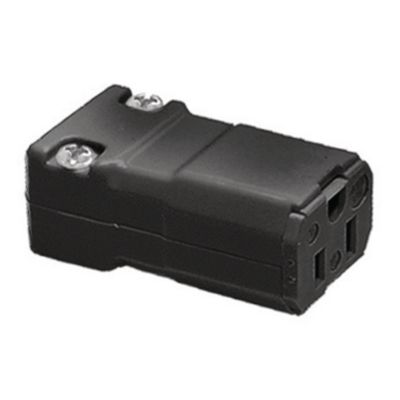

Wiring Device-Kellems Valise HBL5969VBLK Female Grounding Insulated Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Plugs Connectors
150957
HBL5969VBLK
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Black
- Cord Diameter: 0.22 to 0.66
- Dimensions: 2.68 x 1.32 x 2.68
- Enclosure: IP20
- Grade: Commercial/Industrial
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Grounding Insulated Cord Mount
- Voltage Rating: 125
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Black, Single Pack.
- Features
- Hinged one-piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
- Withstands 2000 VAC minimum dielectric voltage
- 18 to 12 AWG copper conductor terminal accommodation
- Certified for current interrupting at full rated current
- -40 to 75 deg C operating temperature
