Woodhead 59W48

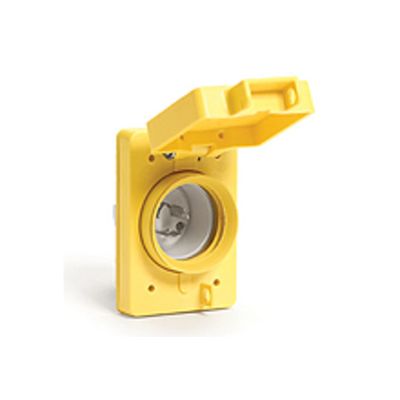

Woodhead reg; 59W48 130146 Inlet Male Receptacle With Single Flip Coverplate, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
7083551
59W48
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Enclosure: IP67
- Material: Rubber
- Nema Rating: NEMA 6-20
- Number of Poles: 2
- Number Of Wires: 3
- Series: 130146
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Inlet
- Voltage Rating: 250
Woodhead® Male Receptacle, Inlet, Series: 130146, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA 6-20 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Rubber, Yellow
- Features
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down up to 1000 psi
- Color-coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- F2 body, 1/2 in cord grip
- Nickel plated brass plug blades and connector contacts
- NEo-TEX® paracril OZO rubber outer housing and grommet
- Stainless steel face screws
- Nylon face insert
- Brass wire saddle clamp
- Lexan receptacle cover plate and closure caps
