Woodhead 67W82

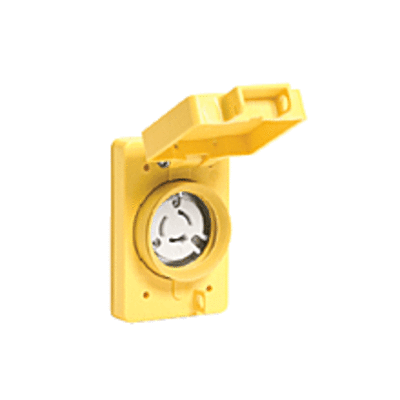

Woodhead reg; Watertite reg; 67W82 130147 3-Phase Single Receptacle With Locking Blade and Single Flip Coverplate, 480 VAC, 20 A, 4 Poles, 5 Wires, Yellow
Plugs Connectors
6817774
67W82
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Enclosure: IP67
- Nema Rating: L22-20
- Number of Poles: 4
- Number Of Wires: 5
- Series: 130147
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 3-Phase Single
- Voltage Rating: 480
Woodhead® Watertite® Receptacle, 3-Phase Single, Series: 130147, 480 VAC, 20 A, 4 Pole, 5 Wires, L22-20 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Yellow
- Features
- Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seal cable without damaging the cable
