ABB Installation Products DL007EUN0TGCA2EU

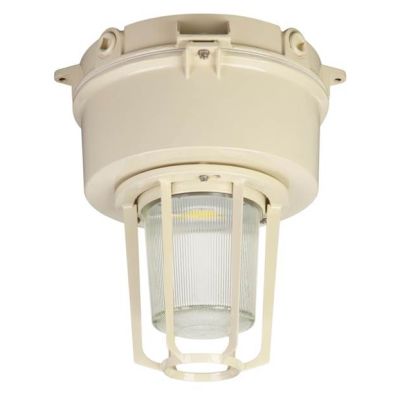

Hazlux UNIPAK DL007EUN0TGCA2EU 3 Series Standard Area Lighting Fixture, (1) LED Lamp, 58 W Fixture, 120/277 VAC, Grey Epoxy Powder Coated Housing
Wall Plates
7560442
DL007EUN0TGCA2EU
ABB Installation Products
$0.00
/ ea
- Ballast Type: Electronic
- Color Rendering Index (CRI): 70
- Color Temperature: 5000
- Dimensions: 466 mm H x 340 mm W
- Enclosure Type: NEMA 4X
- Fixture Wattage: 58
- Housing Finish: Grey Epoxy Powder Coated
- Housing Material: Copper-Free Aluminum
- Lamp Type: LED
- Lens Type: Prismatic Glass
- Lumens: 7100
- Mounting Type: Cone-Top Pendant
- Number of Lamps: 1
- Series: 3 Series
- Type: Standard
- Voltage Rating: 120/277
Hazlux UNIPAK Area Lighting Fixture, Standard, Series: 3 Series, 120/277 VAC, 58 W Fixture, LED Lamp, 1 Lamps, 5000 K Color Temperature, 70 CRI, Electronic Ballast, Prismatic Glass Lens, 7100 Lumens Lumens, NEMA 4X Enclosure, Cone-Top Pendant Mounting, Copper-Free Aluminum Housing Material, Grey Epoxy Powder Coated Housing Finish, 466 mm H x 340 mm W Dimensions
- Features
- With thermal and heat-resistant prismatic glass globe, cast aluminum guard, LED lamp
- Faster and easier installation with simple hinge arrangement that permits "hands free" wiring
- Instant on/instant restrike
- Exceptional energy efficient LED technology reduce maintenance and prevent downtimes
- Rated for extreme temperature -40 to 55 deg C or -35 to 40 deg C depending on mode
- Retrofits into existing Hazlux® 3 applications
- Cast, copper free aluminum construction for high strength, light weight and corrosion resistance
- The paint used in our standard finish is baked, electro deposited, pure epoxy powder
- All exposed hardware is corrosion resistant stainless steel
- Soft start, in-rush maximum current
- AC over voltage, over temperature, load short circuit protection
- Labor, saving installation and maintenance friendly construction
- Labeled for shipment to the United States
- Standard housing driver
