RAB Lighting WPLED3T150

RAB WPLED3T150 Type III Distribution Standard Wallpack,) LED Lamp, 155 W Fixture, 120/208/240/277 VAC, Bronze Housing
IEC Pushbuttons - 22.5mm
7319793 WPLED3T150
Rab Lighting
$0.00 / ea

RAB Lighting WPLED3T150
  • Amperage Rating: 1.31/0.8/0.69/0.6
  • Average Life: 100000
  • Ballast Type: Class 2/Constant Current
  • Color Rendering Index (CRI): 65
  • Color Temperature: 5000

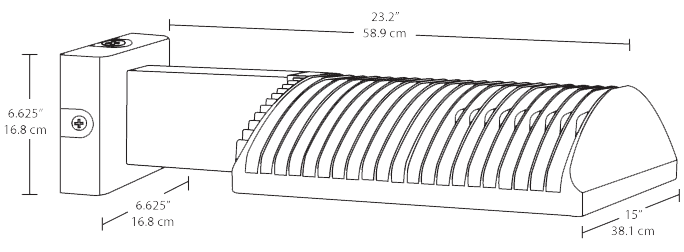

  • Dimensions: 23.2 in L x 15 in W x 6.625 in H
  • Enclosure Type: IP66
  • Fixture Wattage: 155
  • Housing Finish: Bronze
  • Housing Material: Die Cast Aluminum
  • Lamp Type: LED
  • Lamp Wattage: 150
  • Lens Type: Specular Polycarbonate Reflector
  • Light Color: Cool White
  • Lumens: 12526
  • Mounting Type: Wall
  • Series: WPLED
  • Type: Type III Distribution Standard
  • Voltage Rating: 120/208/240/277
RAB Wallpack, Type III Distribution Standard, Series: WPLED, 120/208/240/277 VAC, 155 W Fixture, 1.31/0.8/0.69/0.6 A, LED Lamp, 150 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 65 CRI, Class 2/Constant Current Ballast, Specular Polycarbonate Reflector Lens, 12526 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 23.2 in L x 15 in W x 6.625 in H Dimensions
QTY
Add to Wishlist
  • Features
  • High output, high efficacy LED
  • Maintains 70% of initial lumens at 100000 hr
  • Weatherproof high temperature silicone gasket
  • Superior heat sinking with die cast aluminum housing and external fins
  • Suitable for use in 40 deg C ambient temperature
  • 1.31 A at 120 VAC, 0.8 A at 208 VAC, 0.69 A at 240 VAC, 0.6 A at 277 VAC
  • Without photocell
