Thomas & Betts STEX250

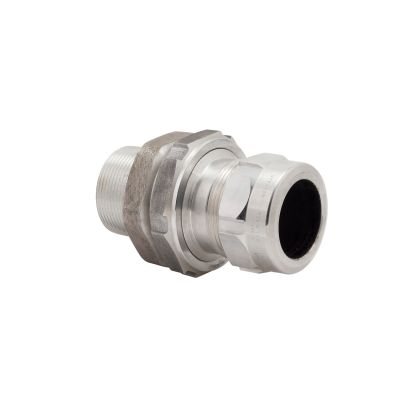

T&B® Fittings Star Teck Extreme® XP STEX250 Teck Cable Connector, 2-1/2 in Trade, 1.825 to 2.375 in Cable Openings, Aluminum
Channel-Strut Accessories
6855528
STEX250
Thomas & Betts
$0.00
/ ea
- Cable Openings: 1.825 to 2.375
- Cable Type: JMC/TECK
- COLOR: Red/Silver
- Connection Type: NPT
- Dimensions: 4.58 in Dia x 5.17 in L
- Material: Aluminum
- Series: STEX
- Trade Size: 2-1/2
T&B® Fittings Star Teck Extreme® XP Teck Cable Connector, Series: STEX, 2-1/2 in, Cable Openings: 1.825 to 2.375 in, JMC/TECK Cable, NPT, Aluminum, Red/Silver, 4.58 in Dia x 5.17 in L
- Features
- Patented power grip grounding ring
- Removable armor stop for greater cable ranges
- Patented elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- 164 cc sealing compound required-liquid
- 2-1/2 in L strip
- 1600 in-lb gland torque
- 1.665 to 2.215 in cable range over armor
- 1.64 in Dia throat with end stop
- 1.995 in Dia throat without end stop
