Thomas & Betts TY1X4WPW6

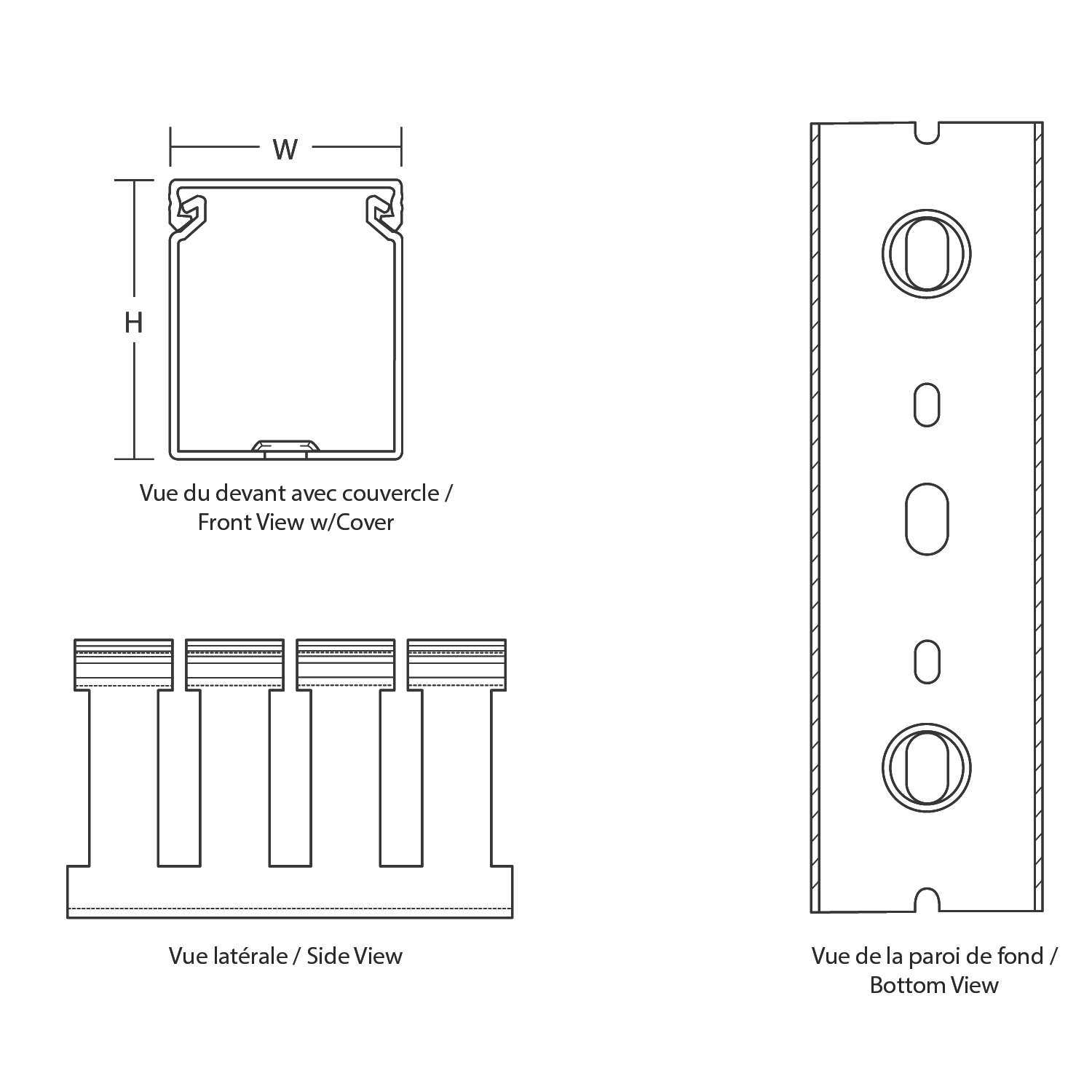

Ty-Duct® TY1X4WPW6 Slotted Wall Wiring Duct, Wide Slot, 1-1/4 in W x 4.37 in D, PVC
Med Voltage Raceway
6776971 TY1X4WPW6
Thomas & Betts
Request a Quote for Pricing

  • COLOR: White
  • Depth: 4.37
  • Length: 6
  • Material: PVC
  • Slot Type: Wide
  • Type: Slotted Wall
  • Width: 1-1/4
Ty-Duct® Wiring Duct, Slotted Wall, 1-1/4 in Width, 4.37 in Depth, 6 ft Length, Wide Slot, PVC, White
  • Features
  • Wide fingers and slots increase rigidity and enable insertion of bundles
  • V-Shaped slot lead-in enables easier and faster wire installation
  • Rounded edges keep hands and wires free of abrasion
  • UL flammability rating of V-0
  • UL94 recognized for use in temperatures up to 50 deg C
  • Economical wiring duct material
  • Non-slip cover does not slide easily and resists vibration
  • Flush cover attaches flush with sidewall for finished look
  • Dual score lines are designed to yield clean breakoffs at the base of the slot and the duct
  • Versatile North American and DIN standard mounting holes enable same duct for multiple applications
  • External dimension: 1-1/4 in W x 4.37 in D
