Thomas & Betts GTC13

Blackburn® E-Z Ground® GTC13 1-Piece Type GTC Mechanical Non-Insulated Tower Grounding Clamp, 4 to 2/0 AWG Conductor, Copper
Ground Rod and Grounding Connectors
7351786 GTC13
Thomas & Betts
$0.00 / ea

Thomas & Betts GTC13
  • Conductor size: 4 to 2/0
  • Conductor Type: Solid/Stranded

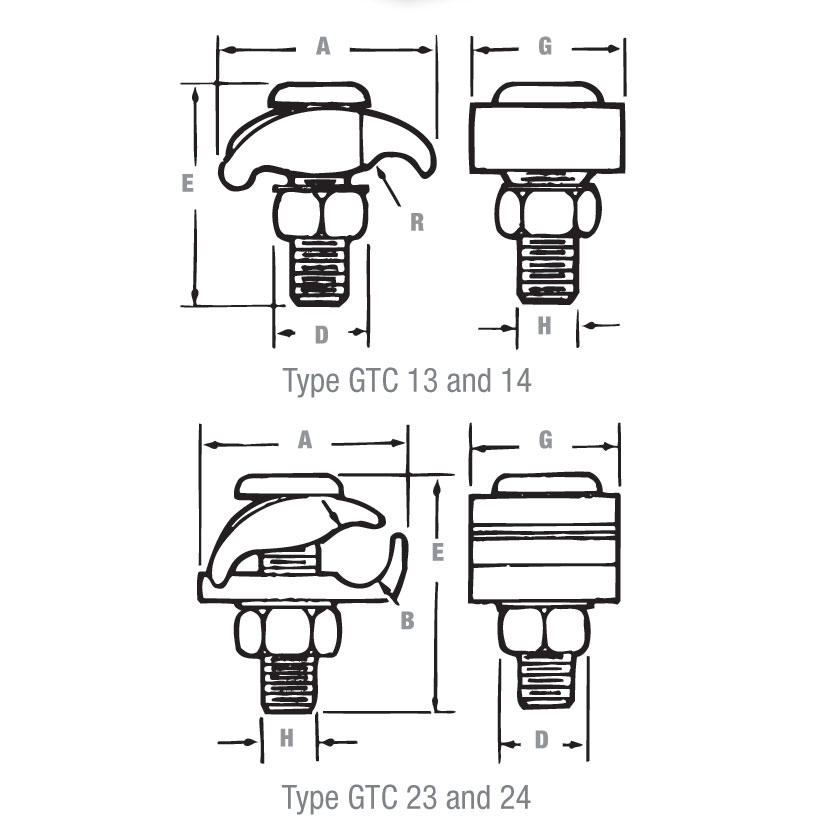

  • Dimensions: 1-21/32 in L x 1-15/32 in W x 13/32 in D
  • Material: Copper
  • Type: 1-Piece Type GTC Mechanical Non-Insulated
Blackburn® E-Z Ground® Tower Grounding Clamp, 1-Piece Type GTC Mechanical Non-Insulated, Solid/Stranded Conductor, 4 to 2/0 AWG Conductor, Copper, 1-21/32 in L x 1-15/32 in W x 13/32 in D
QTY
Add to Wishlist
  • Features
  • Bolt has square shank to prevent turning and allow clamp to be tightened with one wrench
  • GTC 13 and 14 are economical 1-piece clamps which perform the same function as 2-pieces clamps except the under pad support is omitted and conductor is connected directly to tower
  • Castings are of high strength, corrosion-resistant copper alloy
  • 1/4 in THK channel
  • 3/8 in Dia bolt
