Thomas & Betts GUV7825
Blackburn® E-Z Ground® GUV7825 Type GUV Non-Insulated U-Bolt Grounding Clamp, 7/8 to 1 in Rod, 2/0 AWG to 250 kcmil Conductor, Copper
Ground Rod and Grounding Connectors
6842122
GUV7825
Thomas & Betts
$0.00
/ ea
- Conductor size: 2/0 AWG to 250 kcmil
- Conductor Type: Copper/Copper Clad Steel

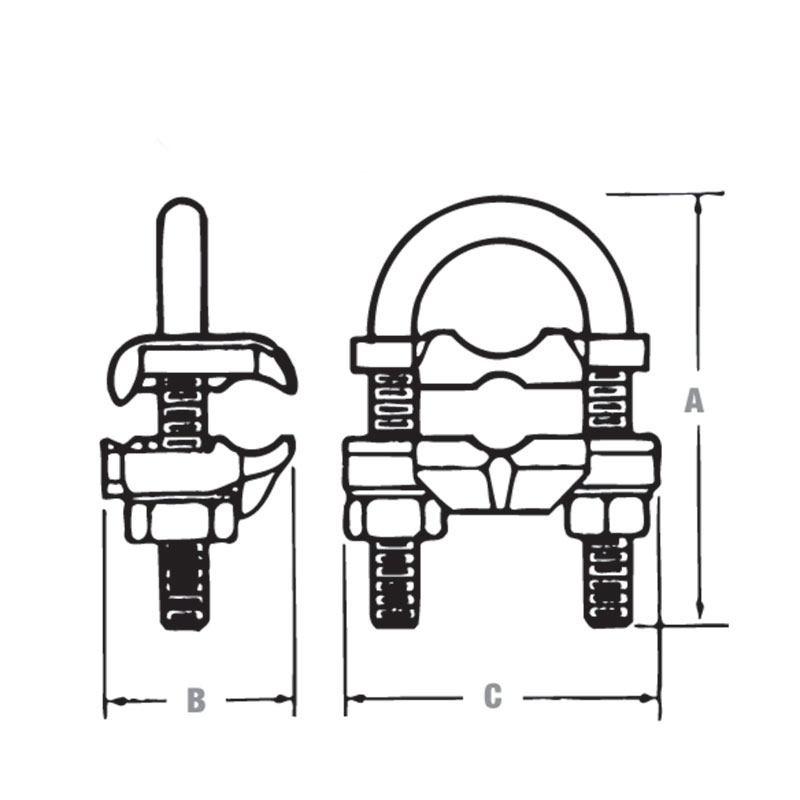

- Dimensions: 2-3/4 in L x 2-5/8 in W x 1-9/16 in D
- Material: Copper
- Pipe Size: 1/2 to 3/4
- Rod Size: 7/8 to 1
- Type: Type GUV Non-Insulated
Blackburn® E-Z Ground® U-Bolt Grounding Clamp, Type GUV Non-Insulated, 1/2 to 3/4 in Pipe, 7/8 to 1 in Rod, Copper/Copper Clad Steel Conductor, 2/0 AWG to 250 kcmil Conductor, Copper, 2-3/4 in L x 2-5/8 in W x 1-9/16 in D
- Features
- Specially designed spacer provides proper alignment between cable and electrode and affords more positive contact area
- Excellent for connecting multiple electrodes with a single cable, such as in substation grounding
- All components cast or forged from copper alloy
- Listed for direct burial in earth or concrete
- GUV body components are cast or forged from copper alloy and U-bolts are stainless steel
