Thomas & Betts HDL-4/0-N

Homac® HDL-4/0-N 2-Hole Heavy Duty Compression Lug Connector, 4/0 AWG Copper Conductor, Die Code: 15514SS, 1/2 in Stud, Copper
Ground Rod and Grounding Connectors
7681369 HDL-4/0-N
Thomas & Betts
$0.00 / ea

Thomas & Betts HDL-4/0-N

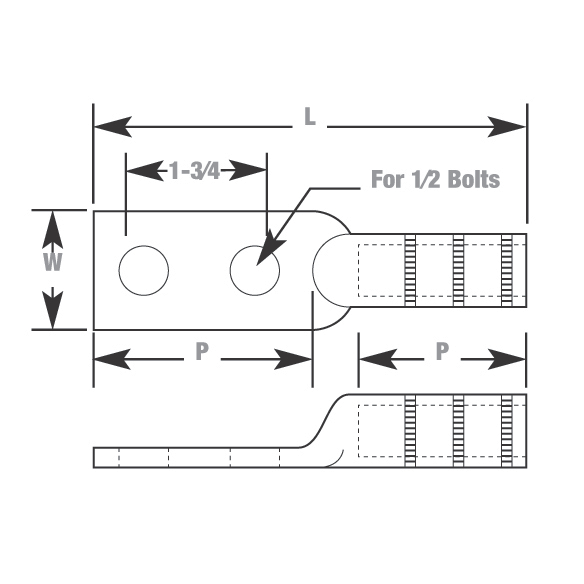

  • Barrel Size: 1-3/4 in L
  • Conductor size: 4/0
  • Conductor Type: Copper
  • Die Code: 15514SS
  • Material: Copper
  • Overall Length: 5-5/8
  • Specifications: Non-Insulated, 1-3/4 in Hole Spacing
  • Stud Size: 1/2
  • Tongue Size: 3 in L x 1-1/8 in W
  • Type: 2-Hole Heavy Duty
Homac® Compression Lug Connector, 2-Hole Heavy Duty, Copper Conductor, 4/0 AWG Conductor, Die Code: 15514SS, 1/2 in Stud, 3 in L x 1-1/8 in W Tongue, 5-5/8 in Overall Length, 1-3/4 in L Barrel, Non-Insulated, 1-3/4 in Hole Spacing, Copper
QTY
Add to Wishlist
  • Features
  • Able to handle the most severe heavy loading applications
  • Ease cable insertion
  • Two hole NEMA pad
