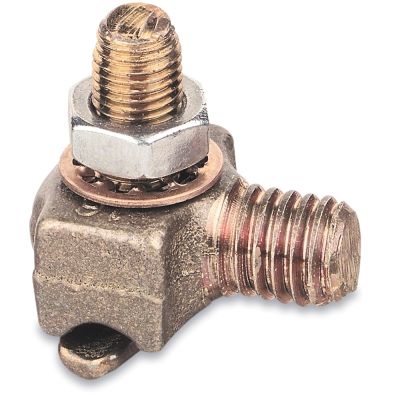

Thomas & Betts TTC2

Blackburn® TTC2 Type TTC Transformer Tank Ground Connector, 8 to 2/0 AWG Conductor, 1/2-13 UNC-2A Stud, Bronze/Copper
Ground Rod and Grounding Connectors
431687 TTC2
Thomas & Betts
$0.00 / ea

Thomas & Betts TTC2
  • Conductor size: 8 to 2/0
  • Connection Type: Mechanical
  • Dimensions: 1-21/32 in L x 1-9/64 in W x 1-51/64 in H
  • Material: Bronze/Copper
  • Stud Size: 1/2-13 UNC-2A
  • Suitable For Use With: EEI-NEMA Distribution Transformer
  • Type: Type TTC
Blackburn® Transformer Tank Ground Connector, Type TTC, 8 to 2/0 AWG Conductor, 1/2-13 UNC-2A Stud, Mechanical, For Use With: EEI-NEMA Distribution Transformer, Bronze/Copper, 1-21/32 in L x 1-9/64 in W x 1-51/64 in H
QTY
Add to Wishlist
  • Features
  • Transformer grounding connectors are cast of high conductivity bronze
  • Eye bolt-on TTC2 rotates to accommodate cable in either vertical or horizontal direction
  • One size connector to handle full range of grounding conductors from #8 through 2/0 AWG stranded
