RAB Lighting EX124-3/4

RAB EX124-3/4 HID Explosionproof Fixture With Guard, PS25 Incandescent Lamp, 120/208/240/277 VAC, Gray Housing
Conduit Body
4164747 EX124-3/4
Rab Lighting
$0.00 / ea

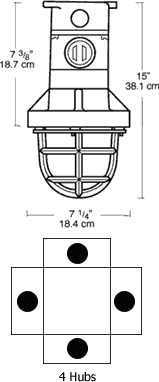

  • Dimensions: 15 in L x 7-1/4 in W
  • Housing Finish: Gray
  • Housing Material: Cast Aluminum
  • Lamp Base Type: Medium
  • Lamp Type: PS25 Incandescent
  • Lamp Wattage: 300
  • Lens Type: Clear Prismatic
  • Light Color: White
  • Mounting Type: Ceiling
  • Type: HID
  • Voltage Rating: 120/208/240/277
RAB Explosionproof Fixture, HID, 120/208/240/277 VAC, PS25 Incandescent Lamp, 300 W Lamp, Medium Lamp Base, White Light, Clear Prismatic Lens, Ceiling Mounting, Cast Aluminum Housing Material, Gray Housing Finish, 15 in L x 7-1/4 in W Dimensions
  • Features
  • Fixture comes complete with built-in junction box
  • Easy relamping with a single thumb screw
  • Factory sealed for easy installation
  • Heat and impact resistant prismatic glass globe
  • Easy field installation
  • Die cast guard, heavy cast aluminum, unit withstands 1490 lb/sq-in hydrostatic pressure
  • Impact and heat resistant clear prismatic design affords excellent light control
  • Heavy gauge aluminum with highly reflective white acrylic finish reflectors
  • 3/4 in hub
  • Leads pass through sealing compound that separates lamp chamber from wiring compartment
  • Heavy gauge nickel plated copper components
  • Spring loaded center contact
  • Medium base glazed porcelain
  • American act compliant COTS item manufactured in the United States and is compliant with the buy American act
