Thomas & Betts MALB-6

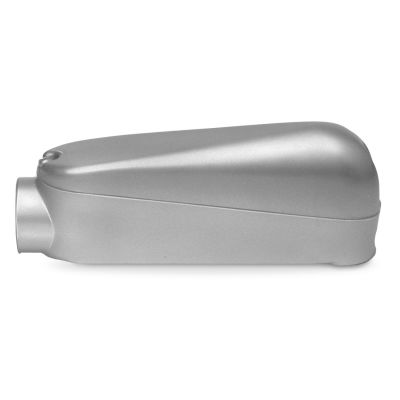

Red Dot® MALB-6 Type LB Pulling Elbow Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 128 cu-in Capacity, Die Cast Aluminum
Conduit Body
550512 MALB-6
Thomas & Betts
$0.00 / ea

  • Capacity: 128
  • Connection Type: Thread
  • Dimensions: 9-1/2 in L x 9-13/16 in W x 3-1/8 in H
  • Enclosure: NEMA 3R
  • Form: Mogul
  • Hub Size: 2
  • Material: Die Cast Aluminum
  • Number of Hubs: 2
  • Series: MALB
  • Type: Type LB Pulling Elbow
Red Dot® Conduit Body, Type LB Pulling Elbow, Series: MALB, 2 in Hub, 2 Hubs, 128 cu-in Capacity, Mogul, NEMA 3R Enclosure, Thread, Die Cast Aluminum, 9-1/2 in L x 9-13/16 in W x 3-1/8 in H
  • Features
  • Copper-free aluminum provides increased corrosion-resistance
  • Precision cast and machined surfaces permit safer wire pulling
  • Clean cover edges provide good gasket sealing
  • Precision NPT threaded and set screw hubs allow trouble-free field installation
  • Retained deep slotted stainless steel cover screws for faster installation
  • Clear UL, CSA and cubic content markings speed approval by inspectors
  • Accessible wiring chamber provides a convenient location to pull conductors and make splices
  • Dome style cover permits easy wire pulling
