Raco 3703-6

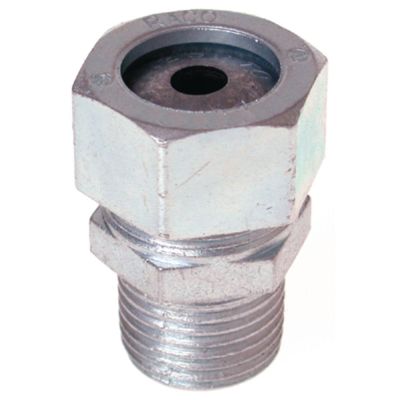

RACO® 3703-6 Form 3 Strain Relief Straight Cord Connector, 3/4 in Trade, 0.65 to 0.7 in Cable Openings, Steel, Electro-Plated Zinc
Cord Connectors and Grips
4341832
3703-6
Raco
$0.00
/ ea
- Cable Openings: 0.65 to 0.7
- COLOR: Silver
- Connection Type: NPT
- Dimensions: 1-31/64 in L x 1-13/32 in W
- Finish: Electro-Plated Zinc
- Material: Steel
- Trade Size: 3/4
- Type: Form 3 Strain Relief Straight
RACO® Cord Connector, Form 3 Strain Relief Straight, 3/4 in, Cable Openings: 0.65 to 0.7 in, NPT, Steel, Electro-Plated Zinc, Silver, 1-31/64 in L x 1-13/32 in W
- Features
- All steel/malleable construction provides mechanical strength
- Unique neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
- Washers have cable size range imprinted for identification - eliminates misidentifying inventory
- Use RACO® locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
- All metallic components are zinc electro plated for added corrosion protection
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
- RACO® liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
- Steel nuts
- 9/16 in L thread
- 3/4 in-14 NPT
