Raco 3705-2

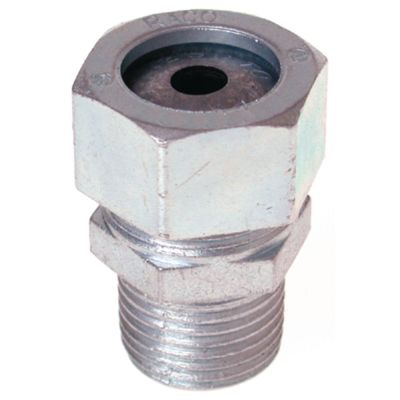

RACO® 3705-2 Form 5 Strain Relief Straight Cord Connector, 1-1/4 in Trade, 1 to 1-1/4 in Cable Openings, Malleable Iron, Electro-Plated Zinc
Cord Connectors and Grips
4341837
3705-2
Raco
$0.00
/ ea
- Cable Openings: 1 to 1-1/4
- COLOR: Silver
- Connection Type: NPT
- Dimensions: 1-7/8 in L x 2-3/16 in W
- Finish: Electro-Plated Zinc
- Material: Malleable Iron
- Trade Size: 1-1/4
- Type: Form 5 Strain Relief Straight
RACO® Cord Connector, Form 5 Strain Relief Straight, 1-1/4 in, Cable Openings: 1 to 1-1/4 in, NPT, Malleable Iron, Electro-Plated Zinc, Silver, 1-7/8 in L x 2-3/16 in W
- Features
- All steel/malleable construction provides mechanical strength
- Unique neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
- Washers have cable size range imprinted for identification - eliminates misidentifying inventory
- Use RACO® locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
- All metallic components are zinc electro plated for added corrosion protection
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
- RACO® liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
- Malleable nuts
- 43/64 in L thread
- 1-1/4-11-1/2 NPT
