Thomas & Betts HTZ8

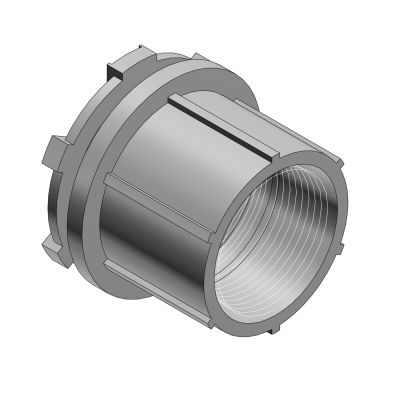

T&B® CHASE® HTZ8 Conduit Hub With Insulated Throat, 3 in, For Use With Threaded IMC/Rigid Conduits, Die Cast Zinc, Aluminum Lacquered
Compression Connectors
1559223
HTZ8
Thomas & Betts
Request a Quote for Pricing
- Dimensions: 4-5/16 in Dia
- Finish: Aluminum Lacquered
- Material: Die Cast Zinc
- Series: HTZ
- Size: 3
- Suitable For Use With: Threaded IMC/Rigid Conduits
T&B® CHASE® Conduit Hub, Series: HTZ, 3 in Size, For Use With: Threaded IMC/Rigid Conduits, Die Cast Zinc, Aluminum Lacquered, 4-5/16 in Dia Dimensions
- Features
- CHASE® design provides maximum space for wiring in the box, locking nipple sits flush in the enclosure
- Locking nipple should be knurled for positive rounding and be special flush design for extra wiring room
- Plastic insulated throat, precision cast and machined surfaces permit safer wire pulling
- Captive O-ring fits snugly in groove preventing loss and fumbling with parts
- Knurled inner face of locking nipple provides 360 deg of locking and bites through box wall to ensure grounding
- Locking nipple has tightening lugs on two planes for easier assembly in hard to reach field conditions
- Grounding hubs have a ground screw located within the enclosure providing a Tamper proof ground for device
- Locking nipple design permits replacement of the box without disassembling the installation
- Buna-N O-ring
- Plastic insulating sleeves
- Suitable for use where the system is normally hosed down (NEMA 4) for cleaning
- Suitable for use in wet locations
- 3-8 NPT thread
- 3-1/2 in mounting hole
- 1/4 in W panel
