Hubbell Wiegmann SSN4X603712

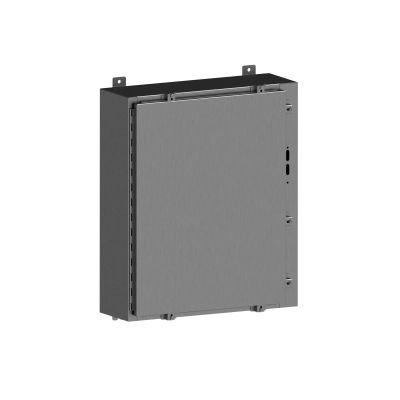

WIEGMANN SSN4X603712 1-DOOR DISCONNECT ENCLOSURE, 37.38 IN W X 12.13 IN D X 60 IN H, NEMA 3R/4/4X/12/13, 304 STAINLESS STEEL
Enclosure General Purpose
530946
SSN4X603712
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 27205.164
- Color: Silver
- Cover Type: Hinged
- Depth: 12.13
- Finish: Smooth Grained
- Height: 60
- Lock: Clamp
- Material: 304 Stainless Steel
- Mounting Type: External Mounting Feet/Flange/Wall
- Nema Rating: NEMA 3R/4/4X/12/13
- Panel Size: 33 in W x 57 in H
- Series: SSN4X
- Type: 1-Door
- Width: 37.38
Wiegmann Disconnect Enclosure, 1-Door, Series: SSN4X, 37.38 in Width, 12.13 in Depth, 60 in Height, NEMA 3R/4/4X/12/13, Hinged Cover, 33 in W x 57 in H Panel, Lock: Clamp, 27205.164 cu-in, External Mounting Feet/Flange/Wall Mount, 304 Stainless Steel, Smooth Grained, Silver
- Features
- Bodies and doors fabricated from 14 ga 304 stainless steel
- Seams are continuously welded and ground smooth
- Rolled lip around all sides of enclosure opening excludes liquids and contaminants
- All exterior hardware is stainless steel
- All interior and exterior parts of stainless steel enclosures are stainless steel except for print pocket
- Stainless steel door clamps are provided around three sides of doors for a watertight seal, additional door hardware is not required
- Doors removed by pulling stainless steel continuous hinge pin
- Polyurethane poured in place gasket
- External mounting feet are provided
- Grounding provisions provided
- Bracket welded to door for attaching disconnect interlock door catch
- Holes are provided in body for mounting disconnect operating handle and operating mechanism
- These enclosures are designed to operate properly without the use of door hardware
