Thomas & Betts NI1086

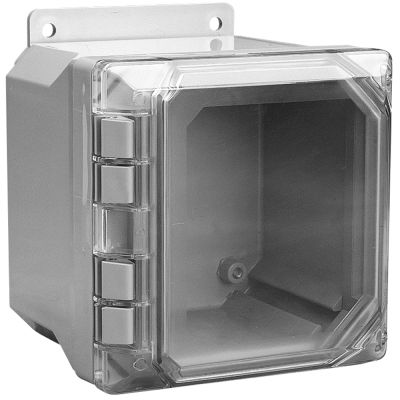

Carlon® Circuit Safe® NI1086 NEMA Enclosure With Clear Cover, 8 in W x 7 in D x 10 in H, NEMA 1/2/3/3S/3X/3SX/4/4X/12, Polycarbonate
Enclosure General Purpose
550092 NI1086
Thomas & Betts
$0.00 / ea

Thomas & Betts NI1086
  • COLOR: Gray
  • Cover Type: Hidden Hinged
  • Depth: 7
  • Height: 10
  • Lock: Latch
  • Material: Polycarbonate
  • Mounting Type: Wall
  • Nema Rating: NEMA 1/2/3/3S/3X/3SX/4/4X/12
  • Panel Size: 6.88 in W x 8.75 in H
  • Temperature Rating: -30 to 230
  • Width: 8
Carlon® Circuit Safe® NEMA Enclosure, 8 in Width, 7 in Depth, 10 in Height, NEMA 1/2/3/3S/3X/3SX/4/4X/12, Hidden Hinged Cover, 6.88 in W x 8.75 in H Panel, Lock: Latch, Wall Mount, -30 to 230 deg F, Polycarbonate, Gray
QTY
Add to Wishlist
  • Features
  • 100% non-metallic construction, including hinges
  • Sturdy SS latches install without penetration of the enclosure base
  • All cover screws are captive
  • Panel suspension system allows the installation of panels at any depth, including stacking of multiple panels
  • Non-metallic mounting rails for easy installation
  • Less than half the weight of metal enclosures, 25% lighter than fiberglass, easier to handle and less expensive to ship
  • 380 V/mil dielectric strength, 3 at 60 Hz, 2.96 at 106 Hz dielectric constant
