Thomas & Betts 256-30695-1153

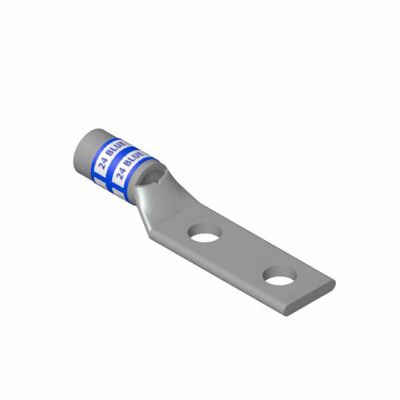

Color-Keyed® 256-30695-1153 2-Hole Non-Insulated Compression Lug Connector With Peep Hole, 6 AWG Copper Conductor, Die Code: 24, #10 Stud, Copper
Lug Compression Connectors
7585868
256-30695-1153
Thomas & Betts
$0.00
/ ea
- Barrel Size: 0.3 in Dia
- Barrel Type: Standard
- Color: Blue
- Conductor size: 6
- Conductor Type: Copper
- Die Code: 24
- Material: Copper
- Overall Length: 1.98
- Specifications: 1/2 in Stud Hole Spacing, NEMA 570/2B Enclosure Rating, Tin Plated
- Stud Size: #10
- Tongue Size: 1.28 in L x 0.44 in W x 0.08 in THK
- Type: 2-Hole Non-Insulated
- Voltage Rating: 35
Color-Keyed® Compression Lug Connector, 2-Hole Non-Insulated, Copper Conductor, 6 AWG Conductor, Die Code: 24, 35 kV, #10 Stud, 1.28 in L x 0.44 in W x 0.08 in THK Tongue, 1.98 in Overall Length, Standard Barrel, 0.3 in Dia Barrel, Specifications: 1/2 in Stud Hole Spacing, NEMA 570/2B Enclosure Rating, Tin Plated, Copper, Blue
- Features
- Peep hole
- High conductivity wrought copper
- NEMA 570/2B enclosure type
