Thomas & Betts 53206
Color-Keyed® 53206 53200 2-Hole Heavy Duty Non-Insulated Compression Lug Connector, 4 AWG Copper Conductor, Die Code: 29, 1/4 in Stud, Copper
Lug Compression Connectors
7467498
53206
Thomas & Betts
$0.00
/ ea
- Barrel Size: 3/8 in Dia
- Barrel Type: Blind End/Standard
- Color: Gray
- Conductor size: 4
- Conductor Type: Copper
- Die Code: 29
- Material: Copper
- Mounting Hole Size: 0.281
- Overall Length: 2
- Series: 53200
- Specifications: 5/8 in Stud Hole Spacing, Tin Plated
- Stud Size: 1/4
- Temperature Rating: 105

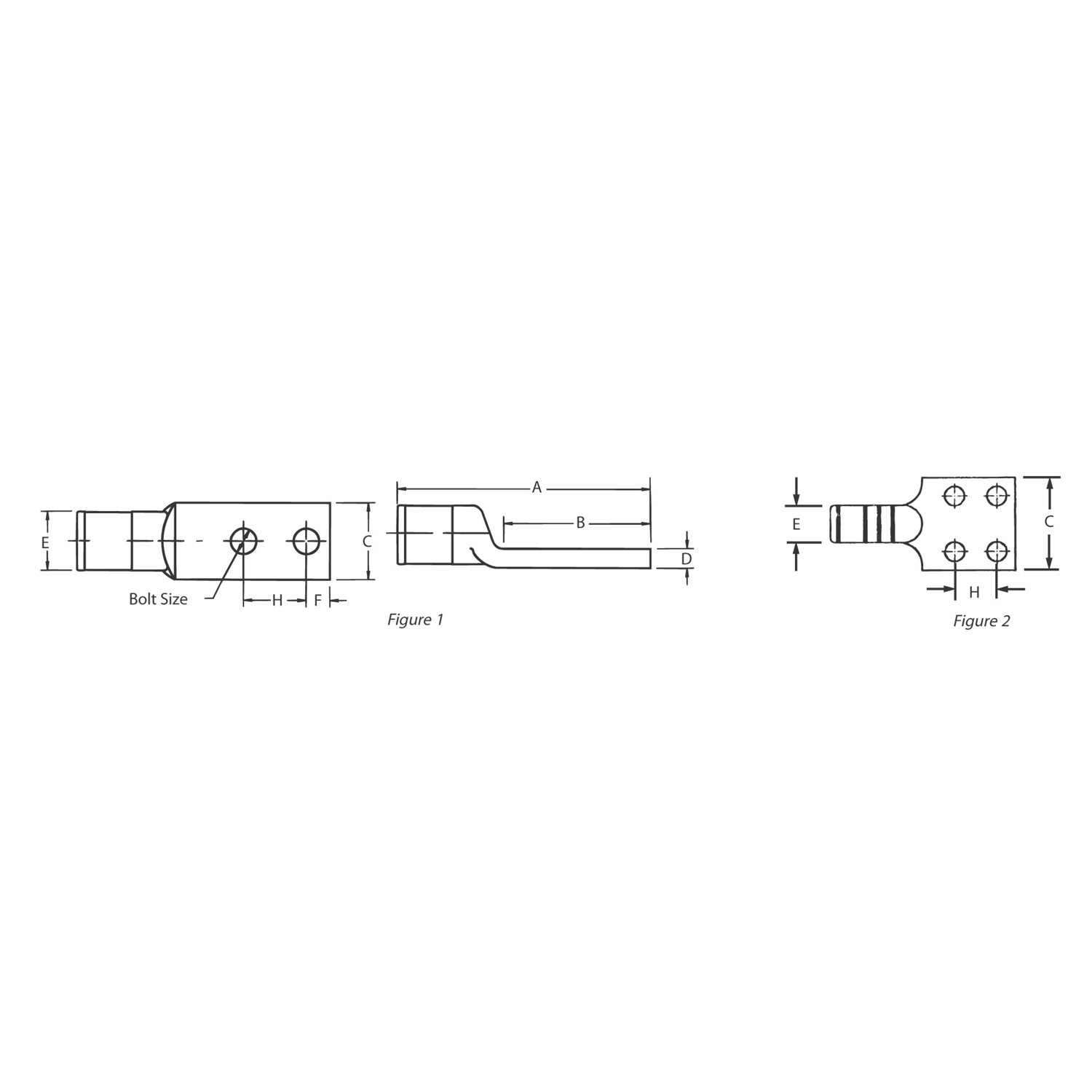

- Tongue Size: 1-5/16 in L x 1/2 in W x 1/8 in THK
- Tongue Type: Straight
- Type: 2-Hole Heavy Duty Non-Insulated
- Voltage Rating: 35
Color-Keyed® Compression Lug Connector, 2-Hole Heavy Duty Non-Insulated, Series: 53200, Copper Conductor, 4 AWG Conductor, Die Code: 29, 35 kV, 1/4 in Stud, Straight Tongue, 1-5/16 in L x 1/2 in W x 1/8 in THK Tongue, 2 in Overall Length, Blind End/Standard Barrel, 3/8 in Dia Barrel, Specifications: 5/8 in Stud Hole Spacing, Tin Plated, 105 deg C, 0.281 in Mounting Hole, Copper, Gray
- Features
- Electro-tin plated for corrosion-resistance
- Chamfered barrel provide ease of strand entry and inspection hole facilitates full insertion of the conductor
- Cable area clearly identified on lug
- Round hole
