Thomas & Betts 54120
Color-Keyed® 54120 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 600 kcmil Copper Conductor, Die Code: 94, 5/8 in Stud, Copper
Lug Compression Connectors
6921482
54120
Thomas & Betts
$0.00
/ ea
- Barrel Size: 1.2 in Dia
- Barrel Type: Standard
- Color: Green
- Conductor size: 600
- Conductor Type: Copper
- Die Code: 94
- Material: Copper
- Mounting Hole Size: 0.656
- Overall Length: 3.79
- Series: 54100
- Specifications: Tin Plated
- Stud Size: 5/8

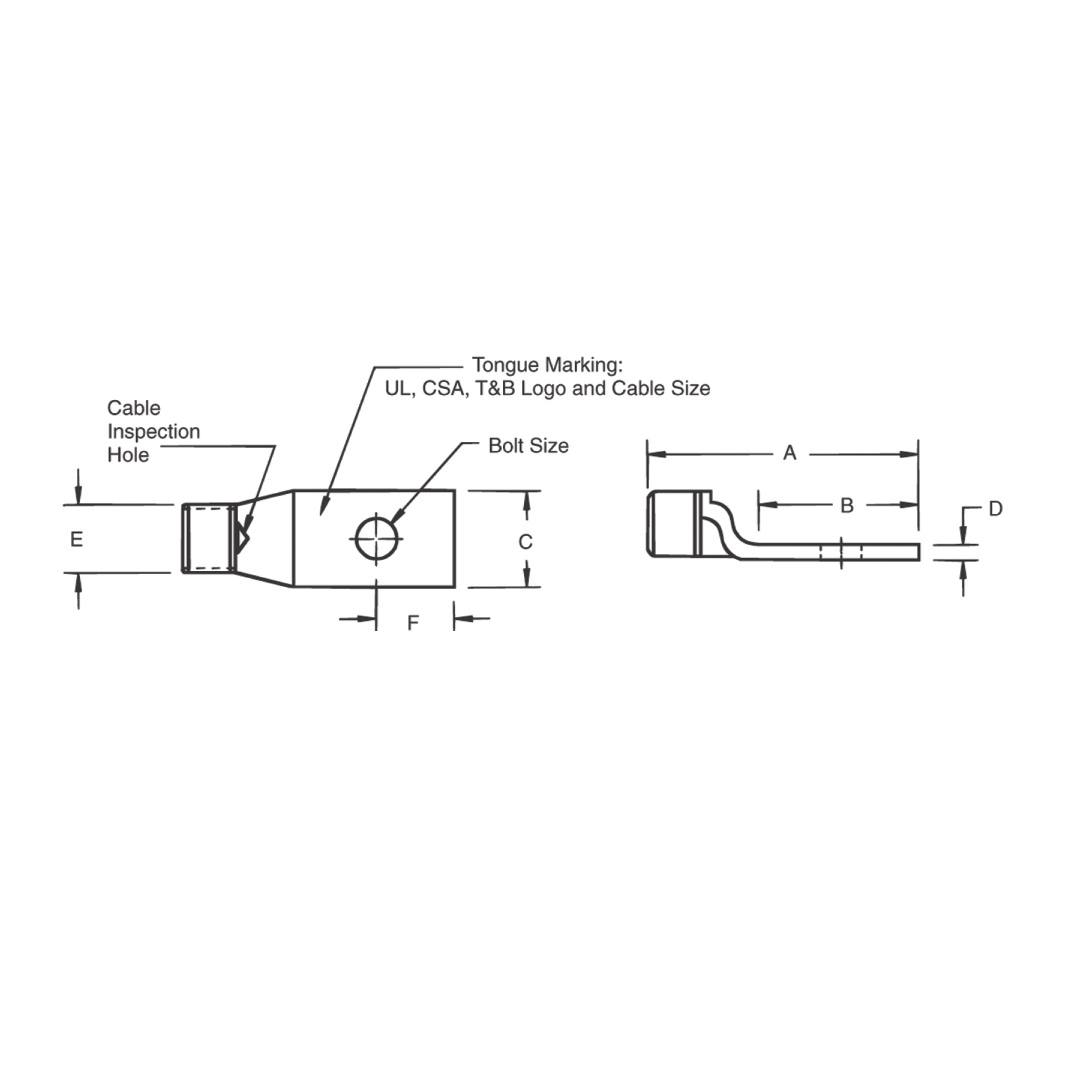

- Tongue Size: 1.58 in L x 1.75 in W x 0.24 in THK
- Tongue Type: Straight
- Type: 1-Hole Non-Insulated
- Voltage Rating: 35
Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 600 kcmil Conductor, Die Code: 94, 35 kV, 5/8 in Stud, Straight Tongue, 1.58 in L x 1.75 in W x 0.24 in THK Tongue, 3.79 in Overall Length, Standard Barrel, 1.2 in Dia Barrel, Specifications: Tin Plated, 0.656 in Mounting Hole, Copper, Green
- Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
