Thomas & Betts 54162UB

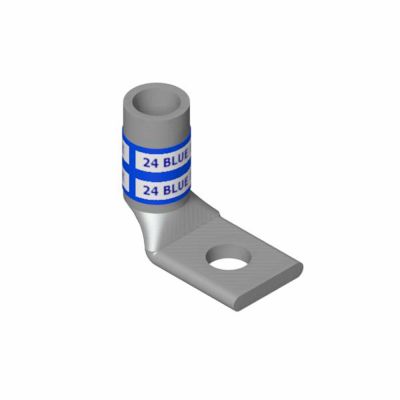

Color-Keyed® 54162UB 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 3/0 AWG Copper Conductor, Die Code: 50, 1/4 in Stud, Copper
Lug Compression Connectors
7167551
54162UB
Thomas & Betts
$0.00
/ ea
- Barrel Size: 0.63 in Dia
- Barrel Type: Standard
- Color: Orange
- Conductor size: 3/0
- Conductor Type: Copper
- Die Code: 50
- Material: Copper
- Mounting Hole Size: 0.281
- Series: 54100
- Specifications: Tin Plated
- Stud Size: 1/4
- Tongue Size: 0.65 in L x 0.92 in W x 0.13 in THK
- Tongue Type: 90 deg
- Type: 1-Hole Non-Insulated
- Voltage Rating: 35
Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 3/0 AWG Conductor, Die Code: 50, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.65 in L x 0.92 in W x 0.13 in THK Tongue, Standard Barrel, 0.63 in Dia Barrel, Specifications: Tin Plated, 0.281 in Mounting Hole, Copper, Orange
- Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
