Thomas & Betts 54476

Color-Keyed® 54476 54400 2-Hole High Voltage Non-Insulated Compression Lug Connector, 2/0 AWG Copper Conductor, Die Code: 45R, 1/2 in Stud, Copper
Lug Compression Connectors
7588262 54476
Thomas & Betts
$0.00 / ea

Thomas & Betts 54476
  • Barrel Size: 9/16 in Dia
  • Barrel Type: Blind End/Long
  • Color: Black
  • Conductor size: 2/0
  • Conductor Type: Copper
  • Die Code: 45R
  • Material: Copper
  • Mounting Hole Size: 0.531
  • Overall Length: 4.67
  • Series: 54400
  • Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated
  • Stud Size: 1/2
  • Temperature Rating: 105

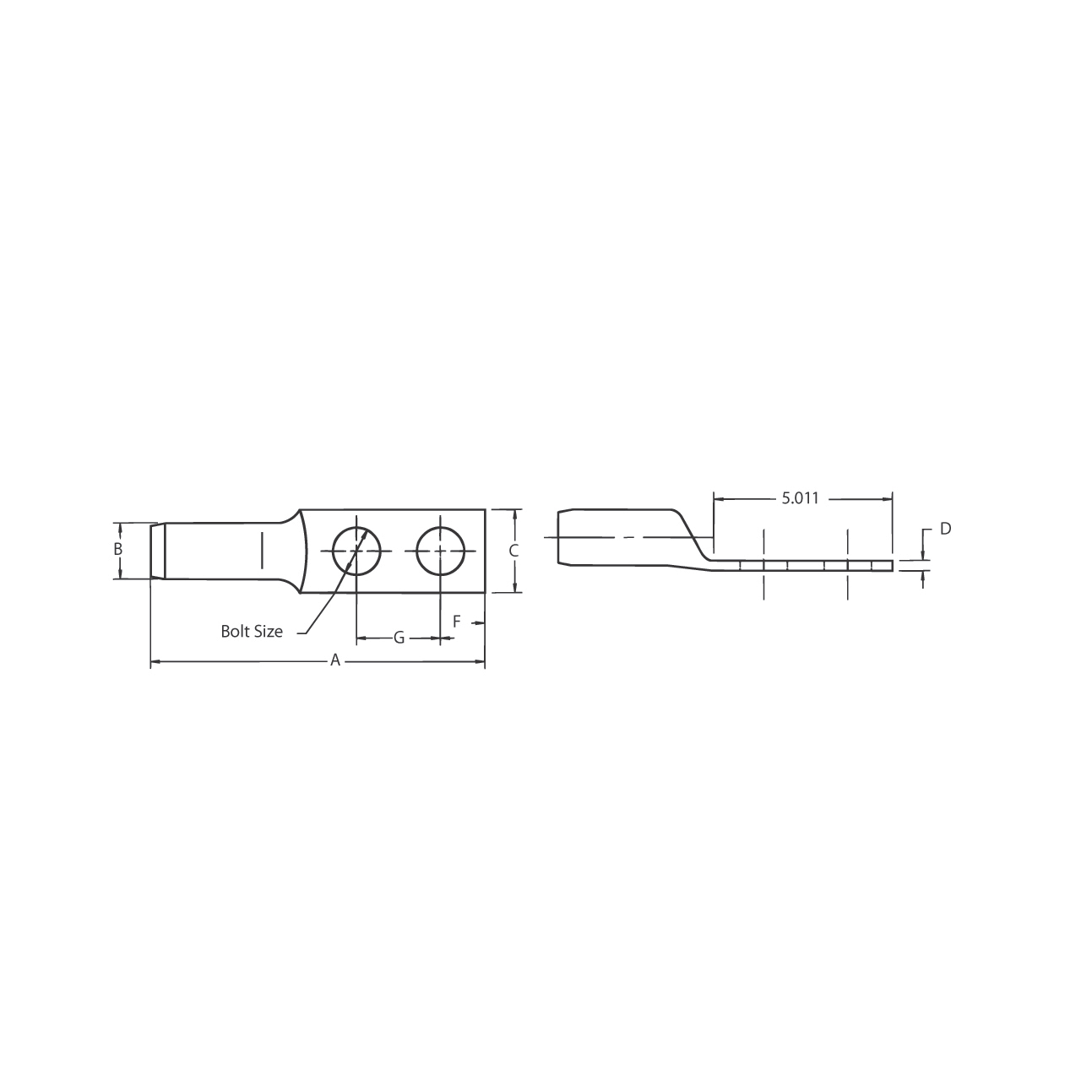

  • Tongue Size: 5.011 in L x 0.83 in W x 0.12 in THK
  • Tongue Type: Straight
  • Type: 2-Hole High Voltage Non-Insulated
  • Voltage Rating: 15
Color-Keyed® Compression Lug Connector, 2-Hole High Voltage Non-Insulated, Series: 54400, Copper Conductor, 2/0 AWG Conductor, Die Code: 45R, 15 kV, 1/2 in Stud, Straight Tongue, 5.011 in L x 0.83 in W x 0.12 in THK Tongue, 4.67 in Overall Length, Blind End/Long Barrel, 9/16 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 105 deg C, 0.531 in Mounting Hole, Copper, Black
QTY
Add to Wishlist
  • Features
  • Recommended for up to 15 kVAC applications, installed with standard t and b tools with special rounding dies
  • The rounding die overlapped compressions provide a smooth round surface
  • This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages
  • Round hole
