Thomas & Betts 54811BEBS
Color-Keyed® 54811BEBS 54800 2-Hole Non-Insulated Compression Lug, 3 to 2 AWG Copper Conductor, Die Code: 33, 1/2 in Stud, Copper
Lug Compression Connectors
7684352
54811BEBS
Thomas & Betts
$0.00
/ ea
- Barrel Size: 0.41 in Dia
- Barrel Type: Bell End/Blind End/Long
- Color: Brown
- Conductor size: 3 to 2
- Conductor Type: Copper
- Die Code: 33
- Material: Copper
- Overall Length: 4.28
- Series: 54800

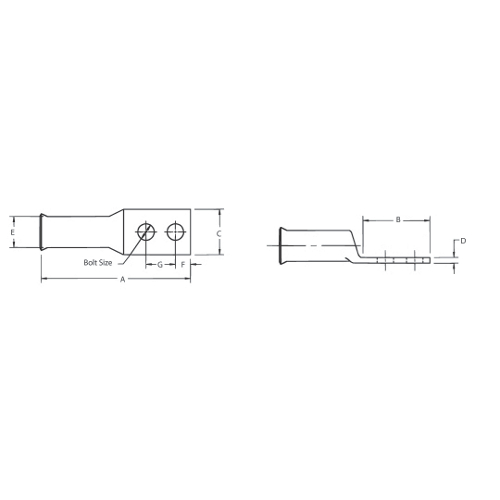

- Specifications: 1-3/4 in Stud Hole Spacing, 1/2 in Center of Hole to Tongue End, Tin Plated
- Stud Size: 1/2
- Tongue Size: 3 in L x 0.88 in W x 0.09 in THK
- Type: 2-Hole Non-Insulated
- Voltage Rating: 600 VAC to 35 kV
Color-Keyed® Compression Lug, 2-Hole Non-Insulated, Series: 54800, Copper Conductor, 3 to 2 AWG Conductor, Die Code: 33, 600 VAC to 35 kV, 1/2 in Stud, 3 in L x 0.88 in W x 0.09 in THK Tongue, 4.28 in Overall Length, Bell End/Blind End/Long Barrel, 0.41 in Dia Barrel, 1-3/4 in Stud Hole Spacing, 1/2 in Center of Hole to Tongue End, Tin Plated, Copper, Brown
- Features
- 1/2 in Center of Hole to Tongue End, 1-3/4 in Hole Spacing
