Thomas & Betts MCC25M6

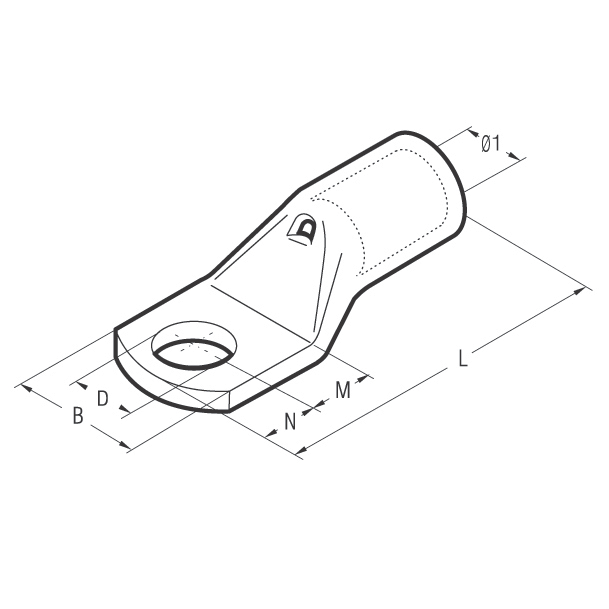

Color-Keyed® MCC25M6 1-Hole Metric Non-Insulated Compression Lug Connector With Peep Hole, 25 sq-mm Copper Conductor, M6 Stud, Copper
Lug Compression Connectors
7476497 MCC25M6
Thomas & Betts
$0.00 / ea

  • Barrel Size: 7 mm Dia
  • barrel type: Standard
  • Conductor size: 25
  • Conductor Type: Copper
  • Material: Copper
  • Overall Length: 32
  • Specifications: Tin Plated
  • Stud Size: M6
  • Temperature Rating: 105
  • Tongue Size: 14 mm W
  • Tongue Type: Straight
  • Type: 1-Hole Metric Non-Insulated
  • Voltage Rating: 35
Color-Keyed® Compression Lug Connector, 1-Hole Metric Non-Insulated, Copper Conductor, 25 sq-mm Conductor, 35 kV, M6 Stud, Straight Tongue, 14 mm W Tongue, 32 mm Overall Length, Standard Barrel, 7 mm Dia Barrel, Specifications: Tin Plated, 105 deg C, Copper
  • Features
  • Manufactured from seamless copper tubing that conforms to BS2781 with heavy duty wall thickness, achieving maximum conductivity with low resistance
  • Electro tin plated for corrosion resistance, chamfered barrels provide ease of strand entry and inspection hole facilitates full insertion of the conductor
  • Cable area clearly identified on lug
  • Metric lugs and splices
