Thomas & Betts 2B40X
Blackburn® 2B40X 2BX 1-Piece Two-Bolt Connector, 1/0 to 4/0 AWG Solid/Stranded Copper Conductor, 3/8 x 9/16 in Bolt, Copper
Lug Mechanical Connectors
7484916
2B40X
Thomas & Betts
$0.00
/ ea
- Bolt Size: 3/8 x 9/16
- Conductor size: 1/0 to 4/0
- Conductor Type: Solid/Stranded Copper

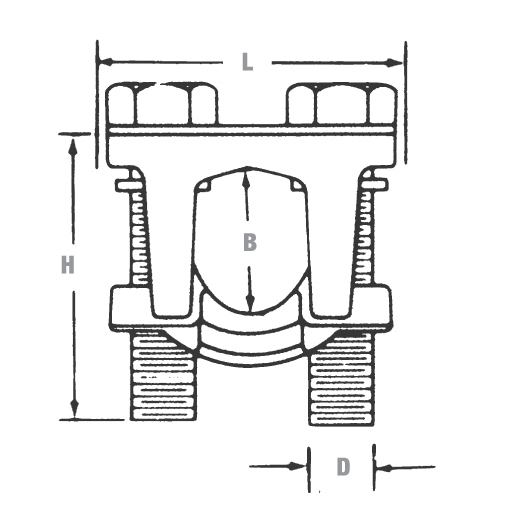

- Dimensions: 1-23/32 in W x 1-7/8 in H
- Material: Copper
- Series: 2BX
- Specifications: 0.53 to 1.056 in Dia Conductor B
- Tap Size: 6 to 4/0 AWG
- Type: 1-Piece
Blackburn® Two-Bolt Connector, 1-Piece, Series: 2BX, Solid/Stranded Copper Conductor, 1/0 to 4/0 AWG Conductor, 6 to 4/0 AWG Tap, 3/8 x 9/16 in Bolt, 0.53 to 1.056 in Dia Conductor B, Copper, 1-23/32 in W x 1-7/8 in H
- Features
- Castings and bolts of high-strength copper alloy
- 1-piece construction
- Without spacer
- One extra length bolt allows top casting to swing-free over two conductors of maximum range
- Free bolt is held in-place with neoprene washer during installation
- 1/0 to 4/0 AWG stranded main conductor range
- 6 AWG solid to 4/0 AWG stranded tap conductor range
- 1/pack
