Thomas & Betts 2B500
Blackburn® 2B500 2B Series Two-Bolt Connector, 300 to 500 kcmil Solid Copper Conductor, 3/4 x 1/2 in Bolt, Copper
Lug Mechanical Connectors
26063
2B500
Thomas & Betts
$0.00
/ ea
- Bolt Size: 3/4 x 1/2
- Conductor size: 300 to 500
- Conductor Type: Solid Copper

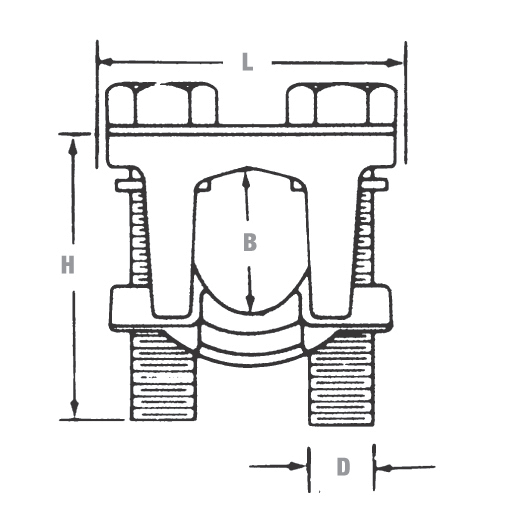

- Dimensions: 2-1/4 in W x 2 in H
- Material: Copper
- Series: 2B Series
- Specifications: 0.883 to 1.626 in Dia Conductor A
- Tap Size: 4 AWG to 500 kcmil
Blackburn® Two-Bolt Connector, Series: 2B Series, Solid Copper Conductor, 300 to 500 kcmil Conductor, 4 AWG to 500 kcmil Tap, 3/4 x 1/2 in Bolt, 0.883 to 1.626 in Dia Conductor A, Copper, 2-1/4 in W x 2 in H
- Features
- Castings and bolts of high-strength copper alloy
- Removable neoprene washers capture each bolt in bottom casting, aiding installation
- Without spacer
- 300 to 500 kcmil main conductor range
- 4 AWG solid to 500 kcmil tap conductor range
- 1/pack
- Removable cap
