Panduit PV10-10FX-L

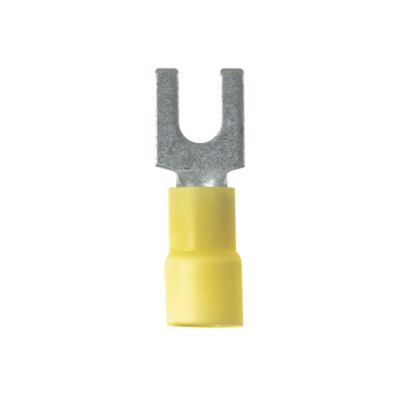

Panduit Pan-Term PV10-10FX-L PV-FX Loose Piece Fork Terminal, #10 Conductor, 1.11 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow
Ring Terminals
4143797
PV10-10FX-L
Panduit
$0.00
/ ea
- Barrel Type: Brazed Seam/Funnel Entry
- Color: Yellow
- Conductor size: #10
- Conductor Type: Copper Stranded
- Finish: Tin Plated
- Length: 1.11
- Material: Copper
- Series: PV-FX
- Specifications: 5/16 in L Wire Strip, 1/4 in Dia Vinyl Insulation, 0.24 in Clearance, Fork Shape Enclosure
- Stud Size: #10
- Temperature Rating: 221
- Tongue Size: 0.37 in W x 0.04 in THK
- Tongue Type: Fork
- Type: Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-FX, Copper Stranded Conductor, #10 Conductor, #10 Stud, 1.11 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 1/4 in Dia Vinyl Insulation, 0.24 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
- Features
- Fork design provides for fast and easy installations, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Locks in place for secure connection
- Flange design provides extra secure connection on a variety of applications
