Thomas & Betts F2027
Sta-Kon® F2027 F Series Insulated Wire Ferrule, 18 to 17 AWG Stranded Copper Conductor, 0.492 in L, Copper, Red
Ring Terminals
7075527
F2027
Thomas & Betts
$0.00
/ ea
- Barrel Size: 0.118 in Dia
- barrel type: Short
- COLOR: Red
- Conductor size: 18 to 17
- Conductor Type: Stranded Copper
- Finish: Tin Coated
- Length: 0.492
- Material: Copper
- Series: F Series

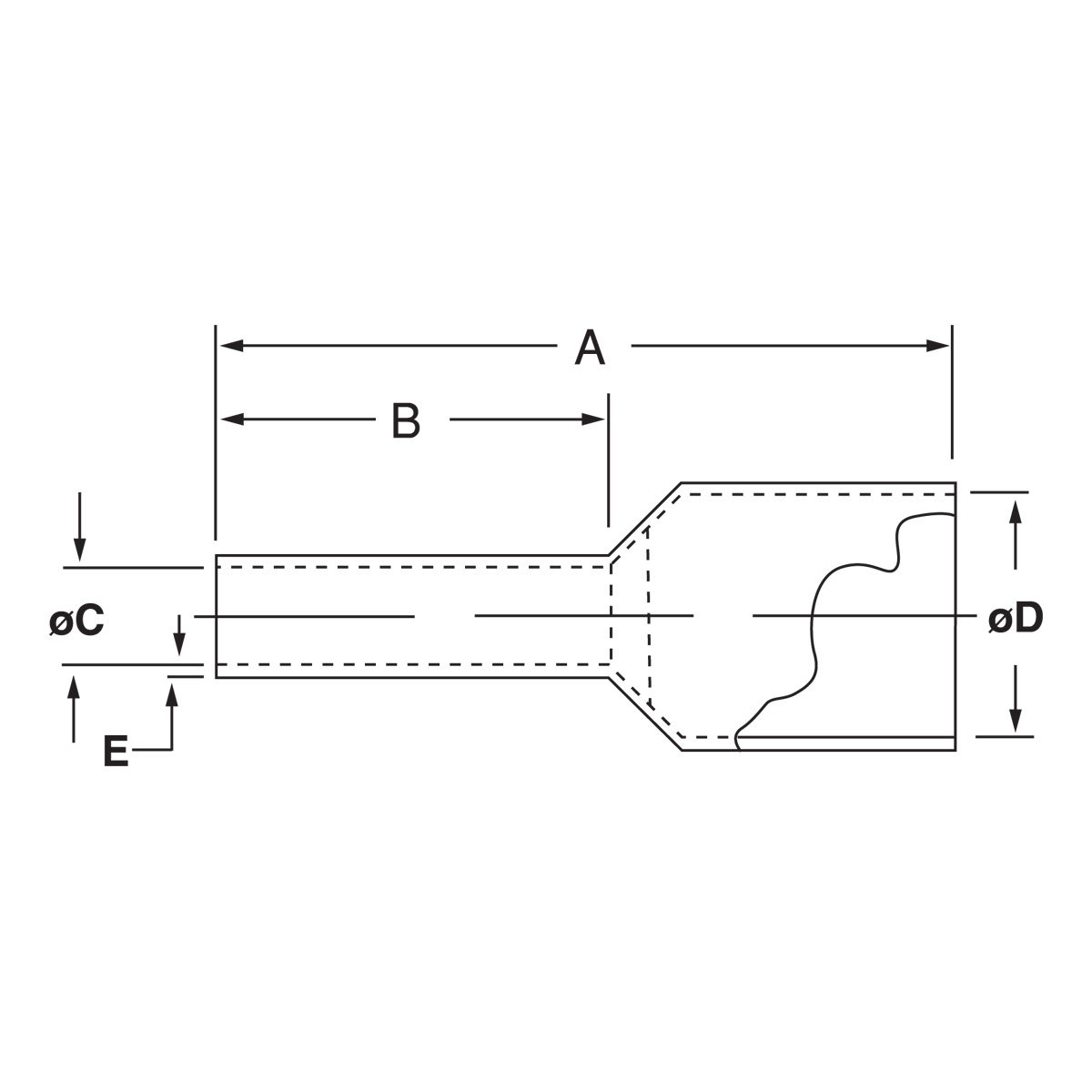

- Specifications: 0.059 in ID x 0.236 in L x 0.006 in THK Pin, 0.118 in Dia Base
- Temperature Rating: 105
- Type: Insulated
- Voltage Rating: 300
Sta-Kon® Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 18 to 17 AWG Conductor, 0.492 in Length, Short Barrel, 0.118 in Dia Barrel, 300 VAC, Specifications: 0.059 in ID x 0.236 in L x 0.006 in THK Pin, 0.118 in Dia Base, 105 deg C, Copper, Tin Coated, Red
- Features
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- Made of high conductivity copper
- Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
- Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
- Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
- Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
- Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
- T1, T3 and ERG4 recommended tools
