Thomas & Betts F8011
Sta-Kon® F8011 Insulated Twin Wire Ferrule, 10 AWG Stranded Copper Conductor, 0.984 in L, Copper, Yellow
Ring Terminals
7075253
F8011
Thomas & Betts
$0.00
/ ea
- Barrel Size: 0.378 in Dia
- COLOR: Yellow
- Conductor size: 10
- Conductor Type: Stranded Copper
- Finish: Tin Coated
- Length: 0.984
- Material: Copper
- Series: F Series

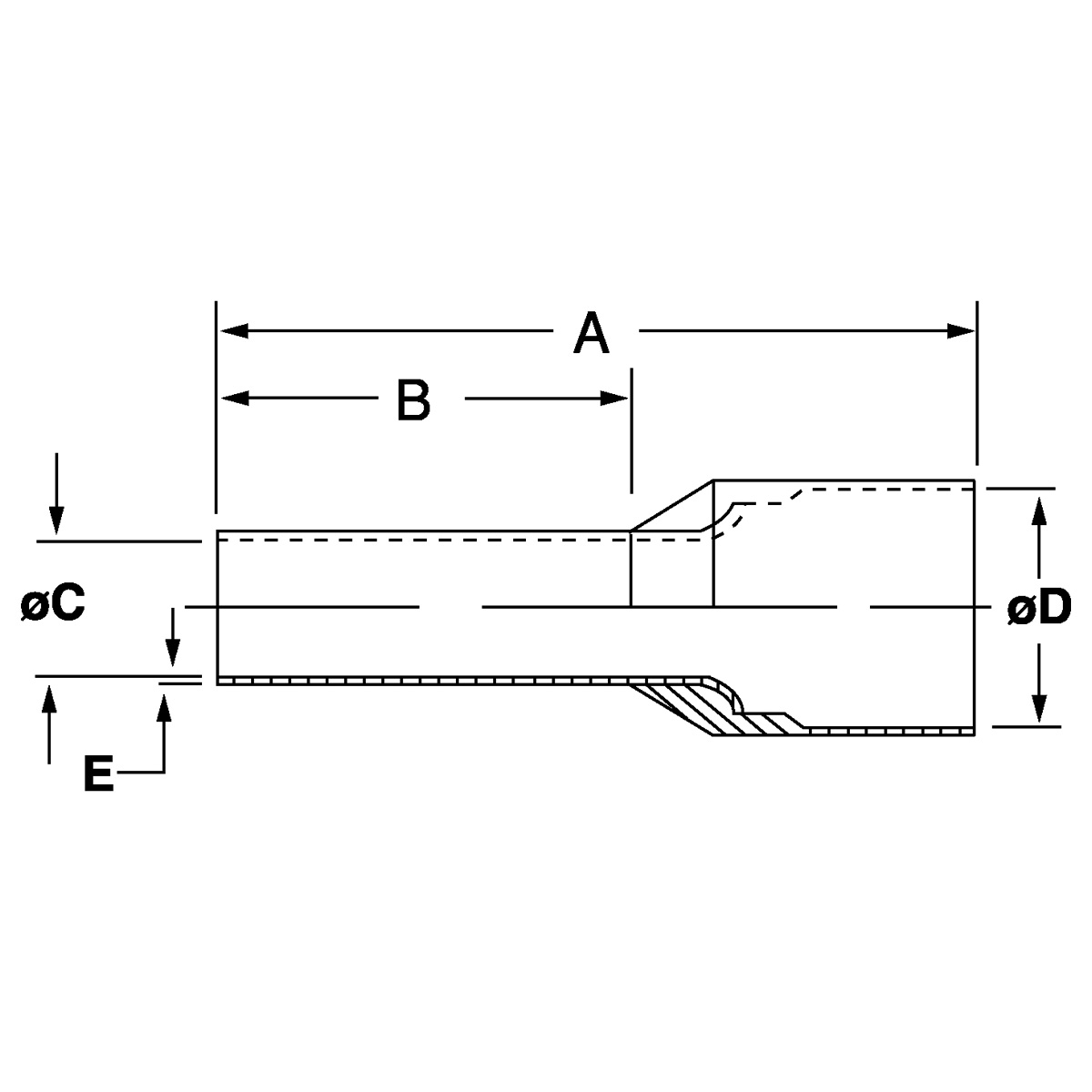

- Specifications: 0.193 in ID x 0.551 in L x 0.008 in THK Pin, 0.378 in Dia Base
- Temperature Rating: 105
- Type: Insulated
- Voltage Rating: 300
Sta-Kon® Twin Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 10 AWG Conductor, 0.984 in Length, 0.378 in Dia Barrel, 300 VAC, 0.193 in ID x 0.551 in L x 0.008 in THK Pin, 0.378 in Dia Base, 105 deg C, Copper, TiN Coated, Yellow
- Features
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- ERG4 recommended tool
