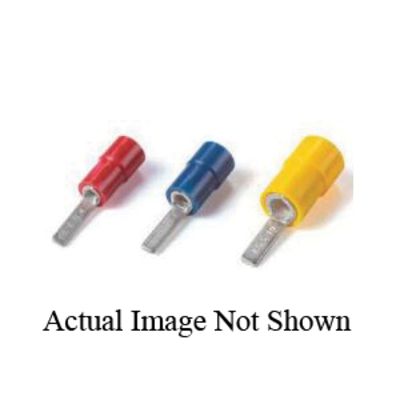

Thomas & Betts KV10-10BL-D

Spec-Kon® KV10-10BL-D Insulated Blade Terminal, 12 to 10 AWG, 0.394 in L Blade, Copper, Yellow
Ring Terminals
7719947 KV10-10BL-D
Thomas & Betts
$0.00 / ea

Thomas & Betts KV10-10BL-D
  • Blade Length: 0.394
  • Blade Width: 0.11
  • COLOR: Yellow
  • Conductor size: 12 to 10
  • Finish: Tin Plated
  • Material: Copper
  • Overall Length: 0.906
  • Temperature Rating: 105
  • Type: Insulated
  • Voltage Rating: 600
Spec-Kon® Blade Terminal, Insulated, 12 to 10 AWG Conductor, 0.394 in Blade Length, 0.11 in Blade Width, 0.906 in Overall Length, 600 VAC, 105 deg C, Copper, Tin Plated, Yellow
QTY
Add to Wishlist
  • Features
  • For use in DIN-style blade terminal blocks
  • Molded funnel-entry insulator
  • Brazed-seam
  • Internal barrel serrations
  • Vinyl insulation
  • 0.039 in THK blade
