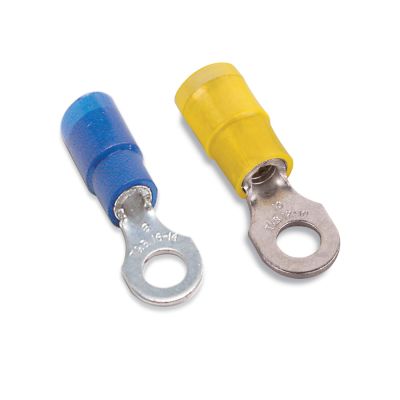

Thomas & Betts RB14-10X
Sta-Kon® RB14-10X RB Series Expanded Insulated Ring Terminal, 18 to 14 AWG Conductor, 0.95 in L, Insulation Grip Sleeve Barrel, Copper, Blue
Ring Terminals
266829
RB14-10X
Thomas & Betts
$0.00
/ ea
- barrel type: Insulation Grip Sleeve
- COLOR: Blue
- Conductor size: 18 to 14
- Finish: Tin Coated
- Length: 0.95
- Material: Copper
- Series: RB Series
- Specifications: 0.19 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
- Stud Size: #10
- Temperature Rating: 105
- Tongue Size: 0.31 in W x 0.03 in THK
- Tongue Type: Ring
- Type: Expanded Insulated
- Voltage Rating: 600
Sta-Kon® Ring Terminal, Expanded Insulated, Series: RB Series, 18 to 14 AWG Conductor, #10 Stud, 0.95 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 0.19 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Blue
- Features
- Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, nylon insulated, Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- Expanded entry
- 100 pieces/pack
