Thomas & Betts RB877-200M

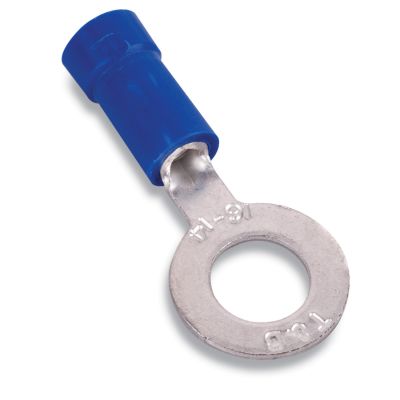

Sta-Kon® RB877-200M RB Series Expanded Terminal With 0.2 in Dia Vinyl Insulation, 18 to 14 AWG Conductor, 0.97 in L, Brazed Seam Barrel, Copper, Blue
Ring Terminals
7401990
RB877-200M
Thomas & Betts
$0.00
/ ea
- barrel type: Brazed Seam
- COLOR: Blue
- Conductor size: 18 to 14
- Finish: Tin Plated
- Length: 0.97
- Material: Copper
- Series: RB Series
- Stud Size: #10
- Temperature Rating: 105
- Tongue Size: 0.31 in W x 0.03 in THK
- Tongue Type: Ring
- Type: Expanded
- Voltage Rating: 600
Sta-Kon® Terminal, Expanded, Series: RB Series, 18 to 14 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 105 deg C, Copper, Tin Plated, Blue
- Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
