Thomas & Betts RC334

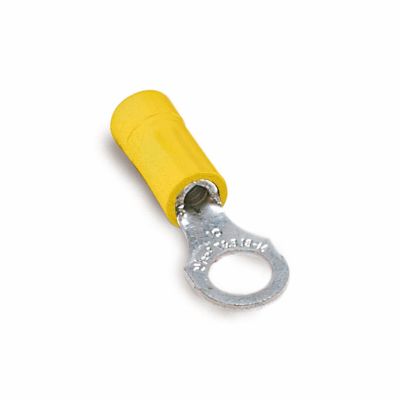

Sta-Kon® RC334 RC Series Expanded Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.1 in L, Copper, Yellow
Ring Terminals
7320349
RC334
Thomas & Betts
$0.00
/ ea
- COLOR: Yellow
- Conductor size: 12 to 10
- Finish: Tin Coated
- Length: 1.1
- Material: Copper
- Series: RC Series
- Specifications: 1/4 in Dia Maximum Insulation, Nylon Insulation
- Stud Size: #6
- Temperature Rating: 105
- Tongue Size: 0.37 in W x 0.04 in THK
- Tongue Type: Ring
- Type: Expanded Insulated
- Voltage Rating: 600
Sta-Kon® Ring Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, #6 Stud, 1.1 in Length, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 1/4 in Dia Maximum Insulation, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
- Features
- Ring terminals won't fall-free even if the mounting screw loosens
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Wire range identification on the tongue of each terminal
- Constructed of electrolytic copper for high conductivity
- Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation
