Thomas & Betts KN14-187-20FD-M

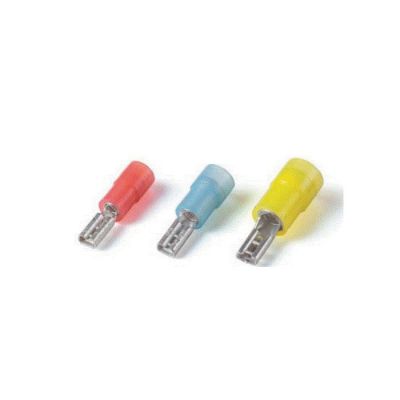

Spec-Kon® KN14-187-20FD-M Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Funnel Entry/Sleeved Barrel, Blue, Insulated
Terminal Female Disconnects
7355764
KN14-187-20FD-M
Thomas & Betts
$0.00
/ ea
- barrel type: Funnel Entry/Sleeved
- COLOR: Blue
- Conductor size: 16 to 14
- Dimensions: 0.787 in L x 0.197 in W
- Finish: Tin Plated
- Insulated: Insulated
- Specifications: 0.433 in L x 0.197 in W Barrel, Nylon Insulation
- Tab Size: 0.187 in W x 0.02 in THK
- Temperature Rating: 105
- Voltage Rating: 600
Spec-Kon® Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Funnel Entry/Sleeved Barrel, 600 V, 0.433 in L x 0.197 in W Barrel, Nylon Insulation, 105 deg C, Blue, Tin Plated, 0.787 in L x 0.197 in W, Insulated: Insulated
- Features
- Provides easy installation and removal from male tabs and auxiliary equipment
- Offers a wide range of products to meet virtually any application
- Internal barrel serrations
- Brass with copper sleeve terminal material
- Metal insulation sleeve crimps wire insulation, providing high vibration resistance and conductor strain relief
- Molded insulator
- Ensures barrel does not separate during crimping
- Funnel entry speeds installation and reduces wire hang up
- Nylon insulated
