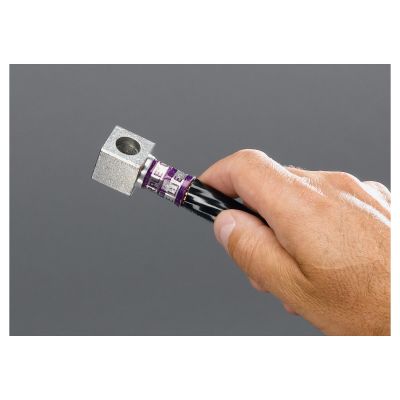

Thomas & Betts MD40F-3

Color-Keyed® MD40F-3 1-Load Female Motor Lead Pigtail Disconnect, 4/0 AWG Beryllium Copper Conductor, Die Code: 54, Copper
Terminal Female Disconnects
603243 MD40F-3
Thomas & Betts
$0.00 / ea

Thomas & Betts MD40F-3
  • Color Code: Purple
  • Conductor size: 4/0
  • Conductor Type: Beryllium Copper
  • Die Code: 54
  • Dimensions: 1.81 in L x 0.88 in W
  • Insulation Type: Boot MDBOOT3
  • Material: Copper
  • Mounting Hole Size: 1/2
  • Specifications: Body Size 3, Tin Plated
  • Strip Length: 3/4
  • Type: 1-Load Female
  • Voltage Rating: 600 VAC to 5 kV
Color-Keyed® Motor Lead Pigtail Disconnect, 1-Load Female, Beryllium Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 600 VAC to 5 kV, Boot MDBOOT3 Insulation, 3/4 in Strip Length, Specifications: Body Size 3, Tin Plated, 1/2 in Mounting Hole, Copper, Purple Color Code, 1.81 in L x 0.88 in W
QTY
Add to Wishlist
  • Features
  • One line to one load (2-wire)
  • Fast, snap together assembly offers maximum labor savings
  • Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot
  • Quick disconnect, no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure
  • Meet or exceed electrical and mechanical performance of bolted connections
  • Constructed of high conductivity copper with tin plated finish
  • Thermoplastic elastomer insulator
  • Quick, reliable change out of electric motors with no bolting, taping or loose connections
  • Total assembly fits into tight motor housings
  • Female disconnects equipped with beryllium copper interface band for dependable connections
