Thomas & Betts RA11

Sta-Kon® RA11 110 Female Disconnect, 22 to 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Brass, Red, Insulated
Terminal Female Disconnects
6878762 RA11
Thomas & Betts
$0.00 / ea

Thomas & Betts RA11
  • COLOR: Red
  • Conductor size: 22 to 18

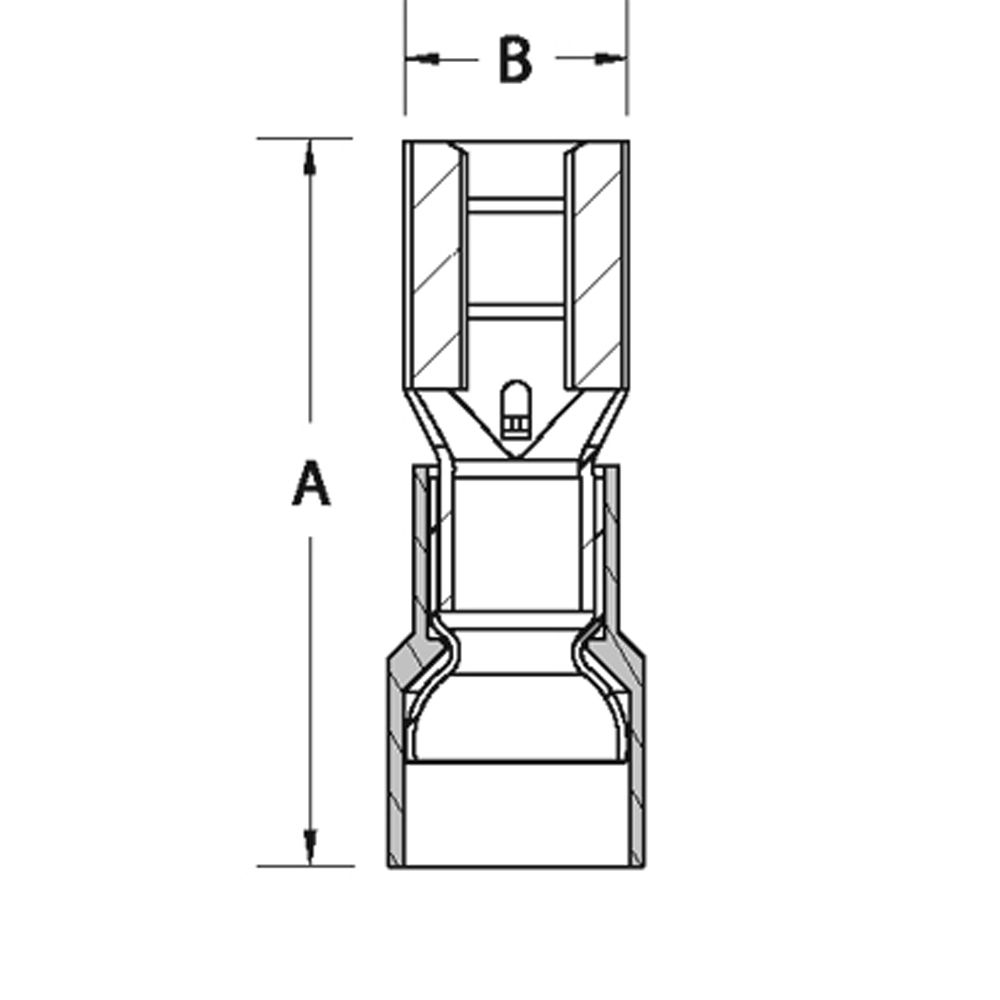

  • Dimensions: 0.75 in L x 0.15 in W
  • Finish: Electroplated Tin
  • Insulated: Insulated
  • Material: Brass
  • Series: 110
  • Specifications: 0.11 in Dia Maximum Insulation, 0.03 in THK Stock
  • Tab Size: 0.11 in W x 0.02 in THK
  • Temperature Rating: 105
  • terminal type: Crimp
  • Voltage Rating: 600
Sta-Kon® Female Disconnect, Series: 110, 22 to 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Crimp Terminal, 600 VAC, 0.11 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 0.75 in L x 0.15 in W, Insulated: Insulated
QTY
Add to Wishlist
  • Features
  • Nylon insulated
  • Suitable for use with ERG4006 tool
