Thomas & Betts RA2573

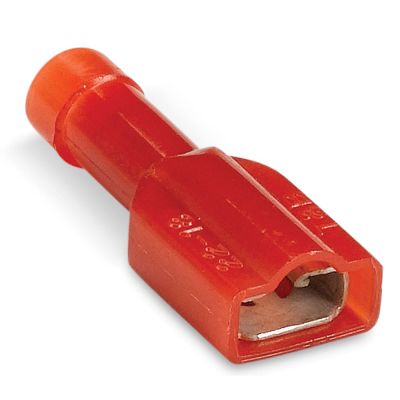

Sta-Kon® RA2573 250 Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Red, Fully Insulated
Terminal Female Disconnects
36624
RA2573
Thomas & Betts
$0.00
/ ea
- barrel type: Brazed Seam
- COLOR: Red
- Conductor size: 22 to 18
- Dimensions: 1.01 in L x 0.38 in W
- Finish: Electroplated Tin
- Insulated: Fully Insulated
- Material: Brass
- Series: 250
- Specifications: 0.165 in Dia Maximum Insulation, 0.03 in THK Stock
- Tab Size: 0.25 in W x 0.032 in THK
- Temperature Rating: 105
- terminal type: Crimp
- Voltage Rating: 600
Sta-Kon® Female Disconnect, Series: 250, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.165 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 1.01 in L x 0.38 in W, Insulated: Fully Insulated
- Features
- Nylon fully insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
