Thomas & Betts 31P

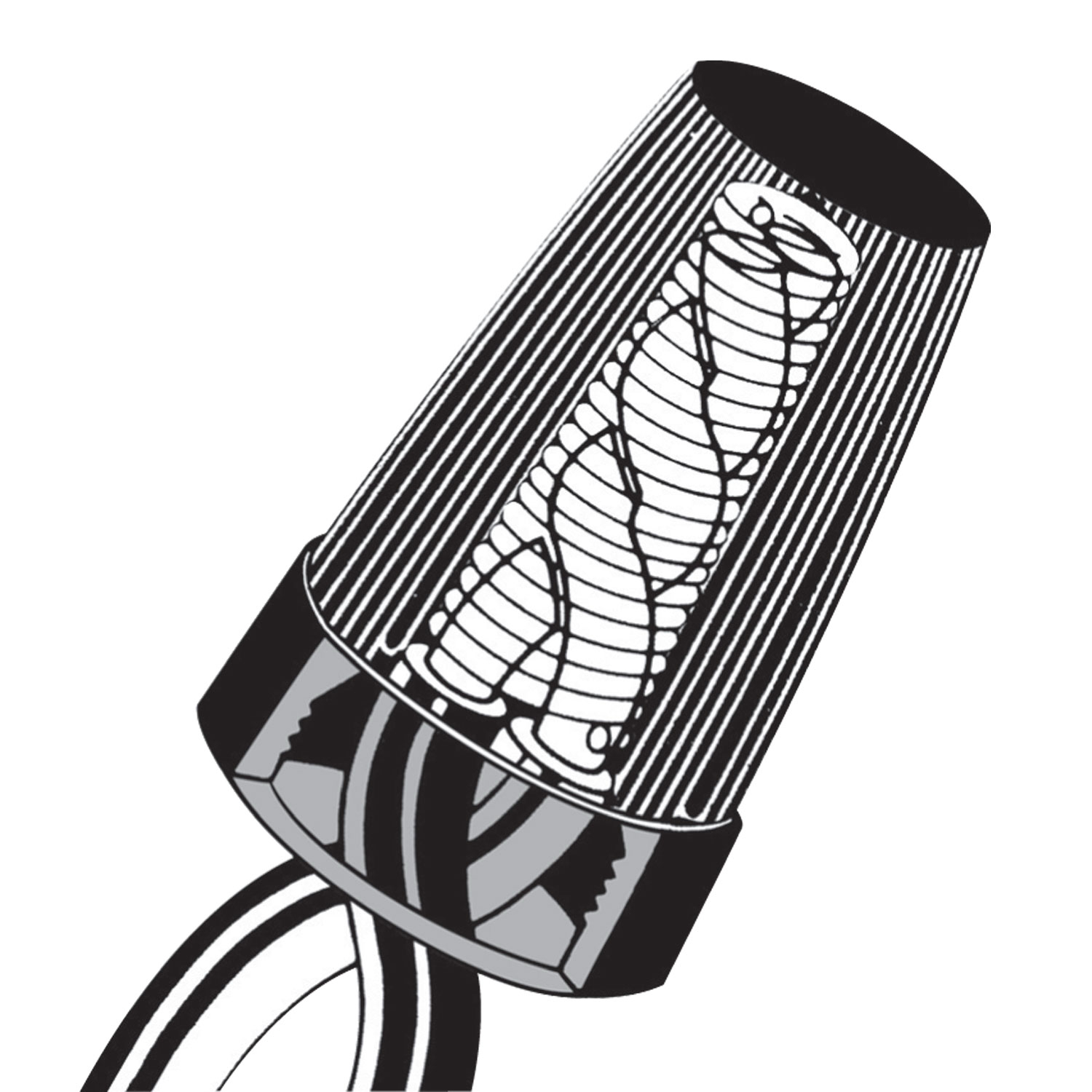

Marrette® Black™ 31P High Temperature Twist-On Wire Connector, Barrel/Ribbed Shell, Conical/Wedge Action Spring, 18 to 14 AWG Aluminum/Copper Wire, Thermoplastic Polymer
Wire Connectors and Wire Nuts
7581795 31P
Thomas & Betts
$0.00 / ea

  • Color: Black
  • Material: Thermoplastic Polymer
  • Shell Style: Barrel/Ribbed
  • Spring Type: Conical/Wedge Action
  • Temperature Rating: 302
  • Type: High Temperature
  • Voltage Rating: 600
  • Wire size: 18 to 14
  • Wire Type: Aluminum/Copper
Marrette® Black™ Twist-On Wire Connector, High Temperature, Barrel/Ribbed Shell Style, Conical/Wedge Action Spring, Aluminum/Copper Wire, 18 to 14 AWG Wire, 600 VAC, 302 deg F, Thermoplastic Polymer, Black
  • Features
  • Deep, wide throat ensures full insulation coverage
  • Threaded entry helps guide large wire bundles right into the spring
  • Large, finely ribbed, barrel shaped cap makes it easier to grip even when hands are greasy or damp
  • Made of rugged, phenolic shell with thermoplastic polymer cap material and unique copper coated spring helps resist corrosion
  • Internal round spring design multiplies the twist-on torque applied by the leverage and wedge action to firmly crush wires into a solid joint
  • 1000 VAC rated for lighting fixtures and signs
  • (2) 18 AWG to (4) 16 AWG wire combinations
  • External cap made of rugged, phenolic material and 150 deg C rated
